BLACKHAWK FIRE PROTECTION DISTRICT
MILAN, ILLINOIS
Technical Specs
• Spartan Metro Star MFD 10" raised roof Chassis
• Cummins ISL9, 450-HP Diesel Engine
• Allison 3000 EVS Automatic Transmission
• Five (5) man cab seating with four (4) SCBA seats
• Heavy Duty 3/16" Aluminum Body with Box Type Flush Doors
• 2500-Gallon Poly Tank with 20-Gallon foam tank
• One (1) Newton 10" square swivel dump with 36" extension
• Waterous CXS, 1500-GPM Pump with left side operator's panel
• Four (4) 2 ½" Discharges, two (2) left, one (1) right side and one (1) rear
• One (1) 4" Discharge, right side
• One (1) 2 ½" and two (2) 1 ½" Cartridge Lay Preconnects, front of body
• One (1) Akron Mercury Monitor with nozzle and mounting bracket
• One (1) 2 ½" Gated Suction, left side
• 24" front bumper extension with 5" Suction and 1 ½" Preconnect with hose well
• Waterous Advantus 6 Foam System
• Four (4) Dual bottle Air bottle compartments , two (2) each side wheel well
• Zico Hydraulic Folding tank rack for 3000-gallon tank, left side
• Suction hose storage in hose bed, right side
• Ziamatic Electrically controlled ladder rack, right side above compartments
• Norcold 2.7 cu. ft. built in refrigerator, chassis cab
• Turtle Tile on floors and/or trays and shelves of compartments
• Progressive Dynamics on-board battery charger with Viair Air compressor
• Kussmaul Super Auto Eject 120-volt shoreline connection
• Federal Q2B mechanical Siren, front bumper
• Two (2) Air Horns, front bumper
• Audiovox Voyager back-up camera with 7" color monitor
• Whelen Electronic Siren with 100-watt Cast Products speaker
• Whelen LED Scene Light Package
• Whelen LED Warning Light Package

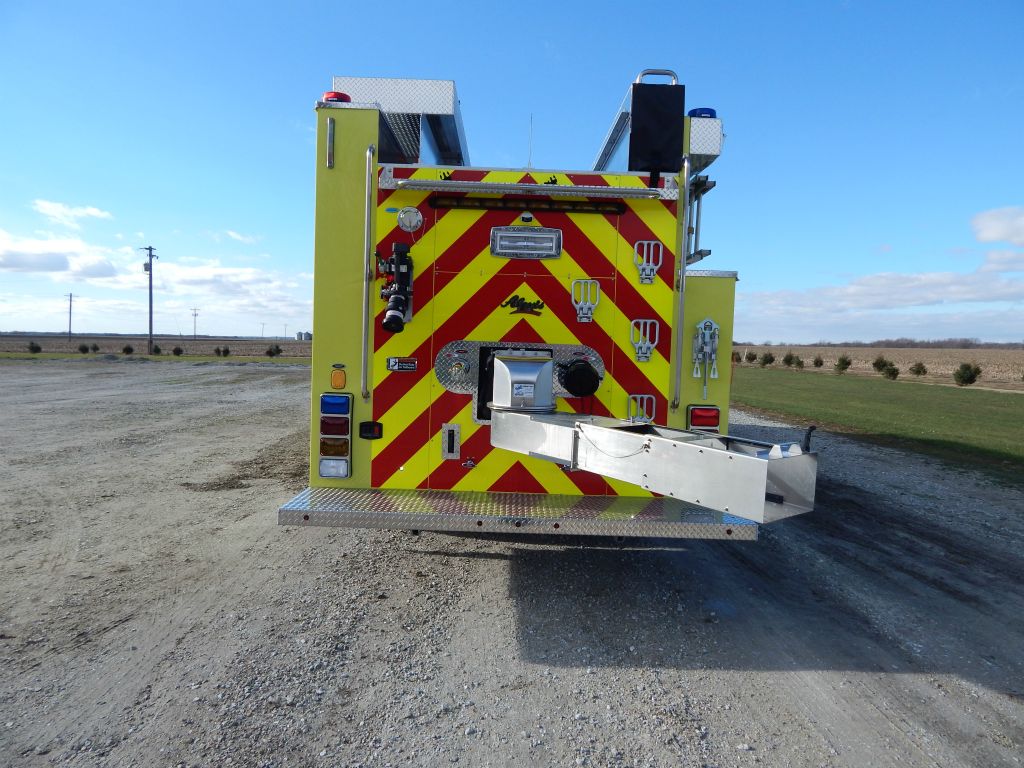

• Diamond Grade Chevron pattern striping, rear
• 10' 8" Overall height
• 37' 4" Overall length
• 222" Wheelbase
• 168" Cab to Axle
• 21,000 FAWR
• 48,000 RAWR
• 69,000 GVWR
