CITY OF BETTENDORF
FIRE DEPARTMENT
BETTENDORF, IOWA
Technical Specs
• HME 1871 W xLFD with 24" raised roof Chassis
• Cummins ISL9, 400-HP Diesel Engine
• Allison 3000 EVS Automatic Transmission
• Two (2) man cab seating front seating with rear command center
• Heavy Duty 14 gauge Stainless Steel Body
• ROM Roll Up Doors
• Three (3) Triple bottle Air bottle compartments, one (1) left and two (2) right side
• Four (4) Upper storage compartments, apparatus roof

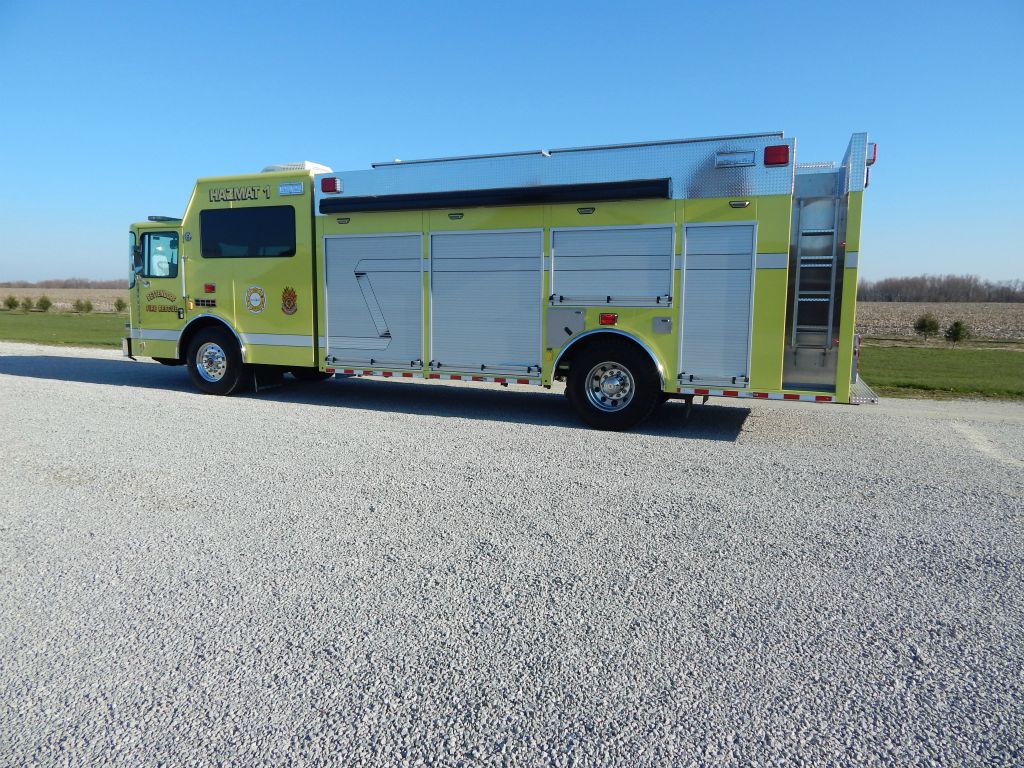

• Custom designed Top access ladder, mounted left side
• Two (2) Girard 12-volt Automatic awnings, one (1) each side
• On Spot Automatic tire chain system

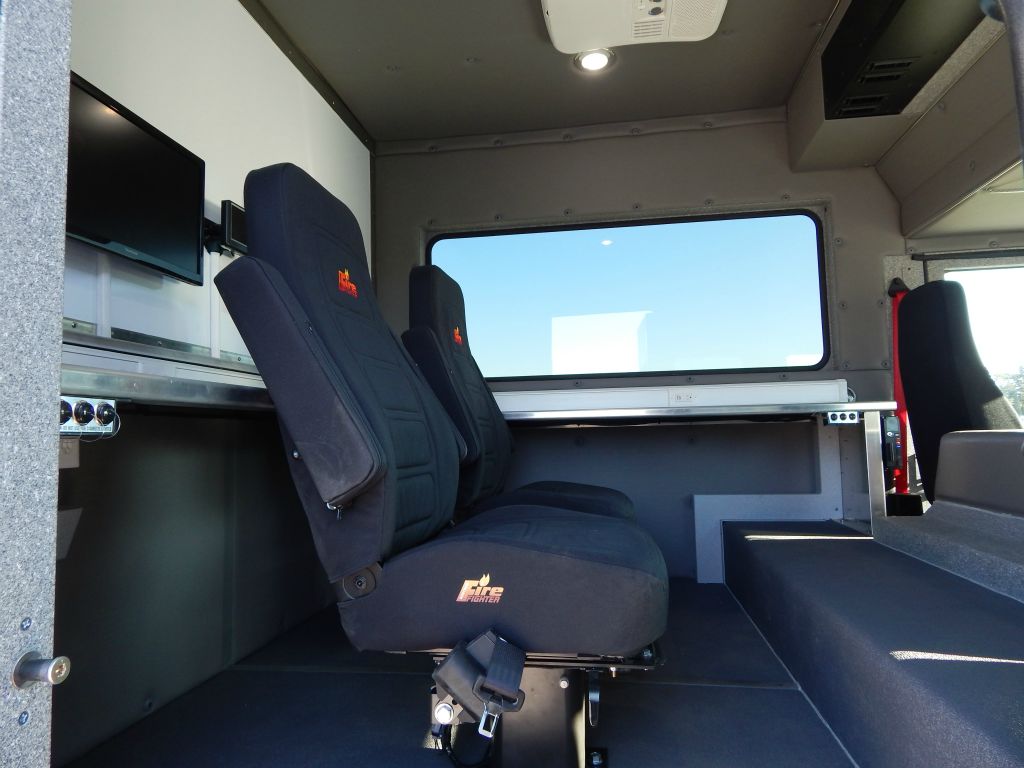

• Cab Command Center with Desk, File and storage cabinets
• Two (2) vertical pull out tool boards with four (4) SCBA brackets each
• Kussmaul 1200 on-board automatic battery charger/air compressor
• Kussmaul Super Auto Eject 120-volt shoreline
• Audiovox back-up Camera system with side view camera and 7" color monitor
• Collins handheld spotlight, cab
• Two (2) Air Horns, front bumper
• Federal EQ2B electronic 200-watt siren
• Onan 20,000 watt Diesel driven Generator with 120-volt system
• Automatic change over relay between shoreline and mobile systems
• Two (2) Electric cord reels with150-ft of 10/3 cord and junction box
• Night Scan Vertical light tower with four (4) Whelen LED 150-watt lights and light tower camera package
• Total unit WIFI capable
• One (1) Weather pack MTR-UHF portable HazMat weather station
• Whelen LED Scene Light Package
• Tomar upper and Whelen lower LED Warning Light Packages

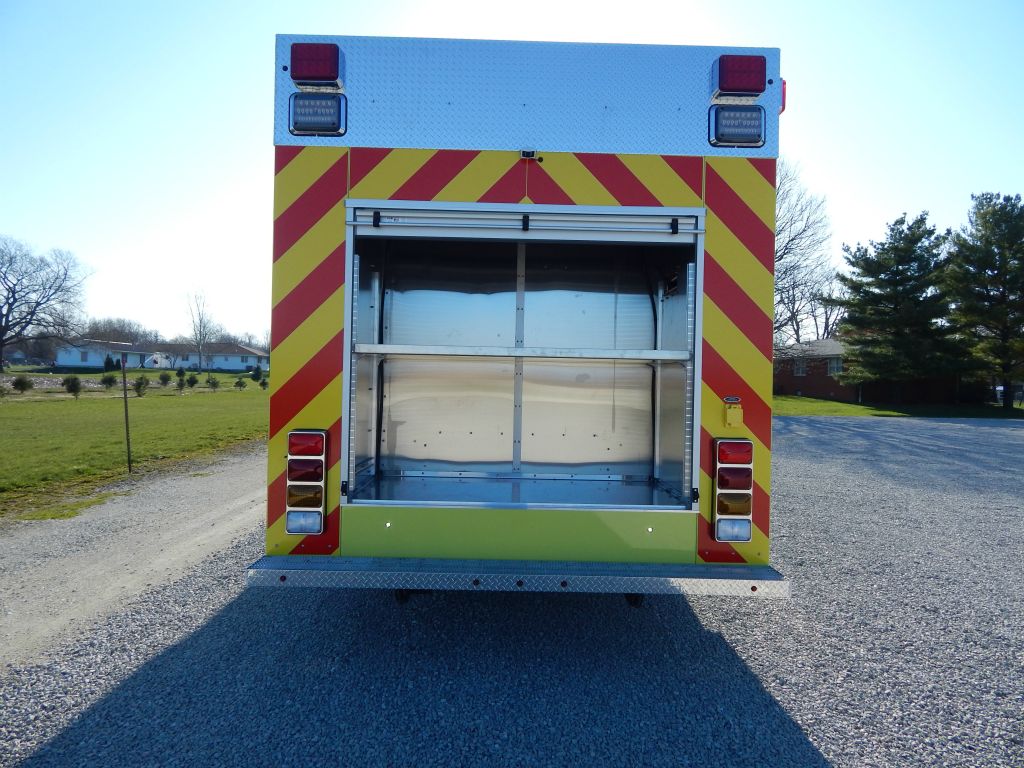

• Chevron pattern striping, rear
• 11' Overall height
• 35' 11" Overall length
• 239" Wheelbase
• 165" Cab to Axle
• 20,000 FAWR
• 27,000 RAWR
• 47,000 GVWR R
