Altona Fire Protection
District
Altona, Illinois
Technical Specs

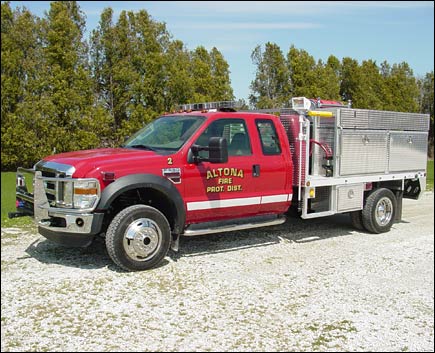

Ford F-550 Super Cab
4x4 DRW XL Chassis
Powerstroke 6.4L V-8, 325-HP Diesel Engine
Ford TorqShift 5-Speed Automatic w/overdrive
Transmission
Heavy Duty 3/16" Aluminum Body
UPF Defender 2C, 300-Gallon Poly Tank with
12-Gallon foam tank
Hale HPX200, 60-GPM Pump with Honda 20-HP Gasoline
Engine
One (1) 1 ½" Discharge with hose
tray and cover, right side rear
One (1) 2 ½" Discharge, rear
Two (2) 1" Booster lines 10-ft. long
Two (2) Electrically controlled spray booms,
front bumper
One (1) 2 ½" Gated Suction
One (1) Hannay Electric Booster Reel with 150-ft.
of 1 " hose
Scotty Around the Pump foam inductor/mixer
Luverne Stainless Steel Nerf bars
Warn Stainless Steel Brush guard with wrap
around extension and receiver
One (1) Reese type trailer hitch, rear
One (1) Ramsey QM 9000, 9000-lb Winch
Two (2) compartments with two (2) drop down
doors each, one (1) each side
Two (2) Under body compartments, one (1) each
side ahead of the rear wheels
One (1) Stokes Basket compartment, top of left
side compartment
Jotto Desk Console, cab dash
Vanner 110-volt On board Automatic Battery
Charger/Conditioner
Kussmaul Super Auto Eject 120-volt Shoreline
Two (2) Akron Brass Extenda Lite 12-volt 150-watt
telescopic lights
Code-3 Electronic Siren with 100-watt Federal
speaker
Whelen Warning Light Package
7' 10" Overall height
23' 9" Overall length
185.8" Wheelbase
84" Cab to Axle
7,000 FAWR
13,660 RAWR
19,500 GVWR
|
