ALEDO FIRE PROTECTION DISTRICT
ALEDO, ILLINOIS
Technical Specs

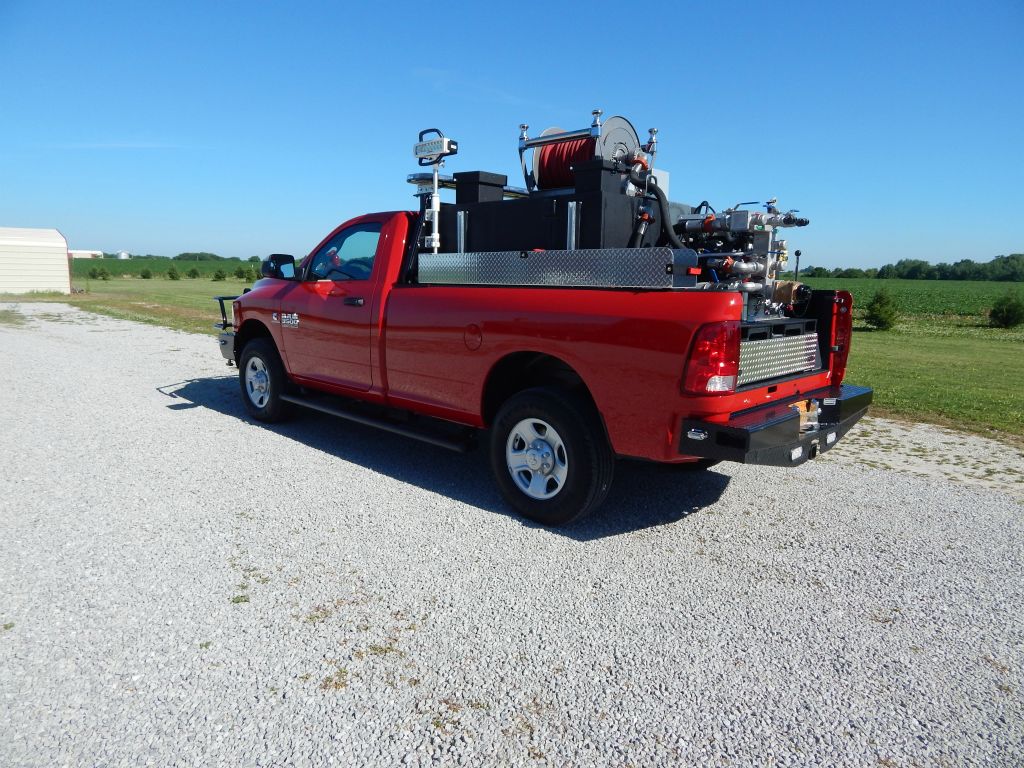

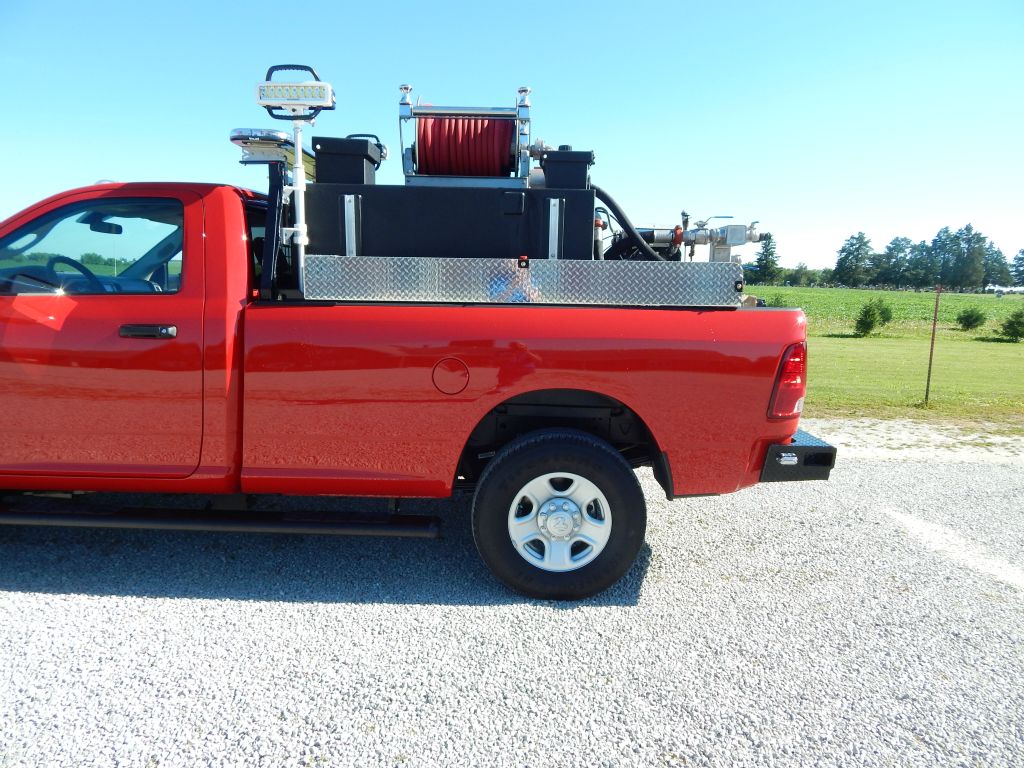

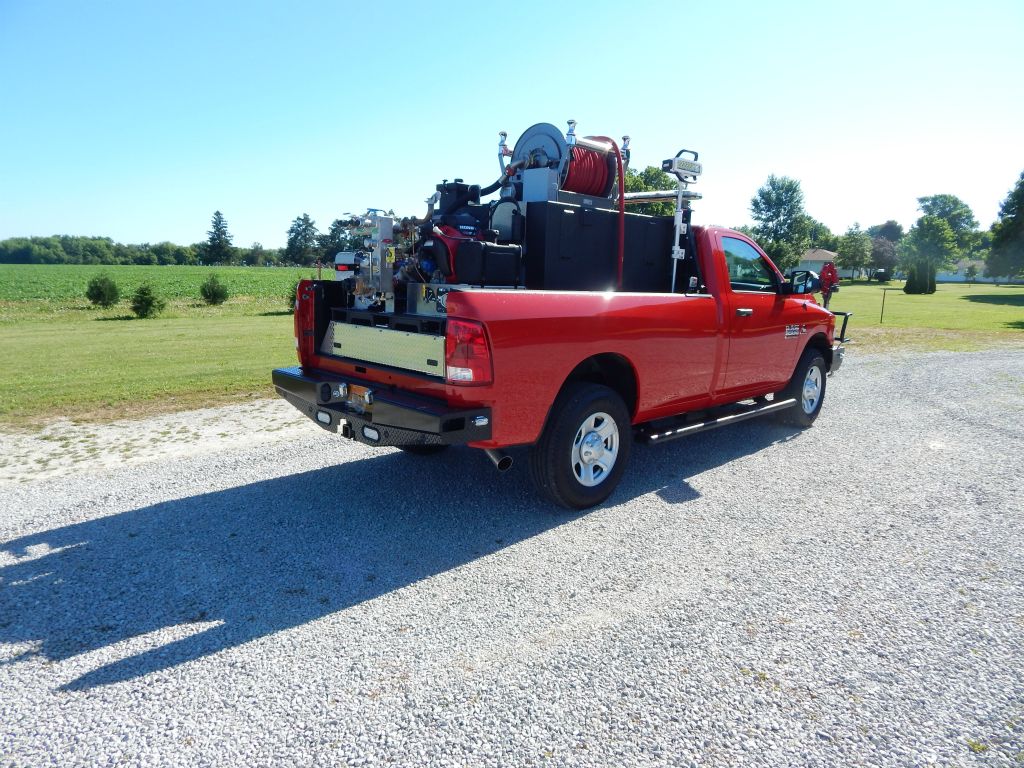

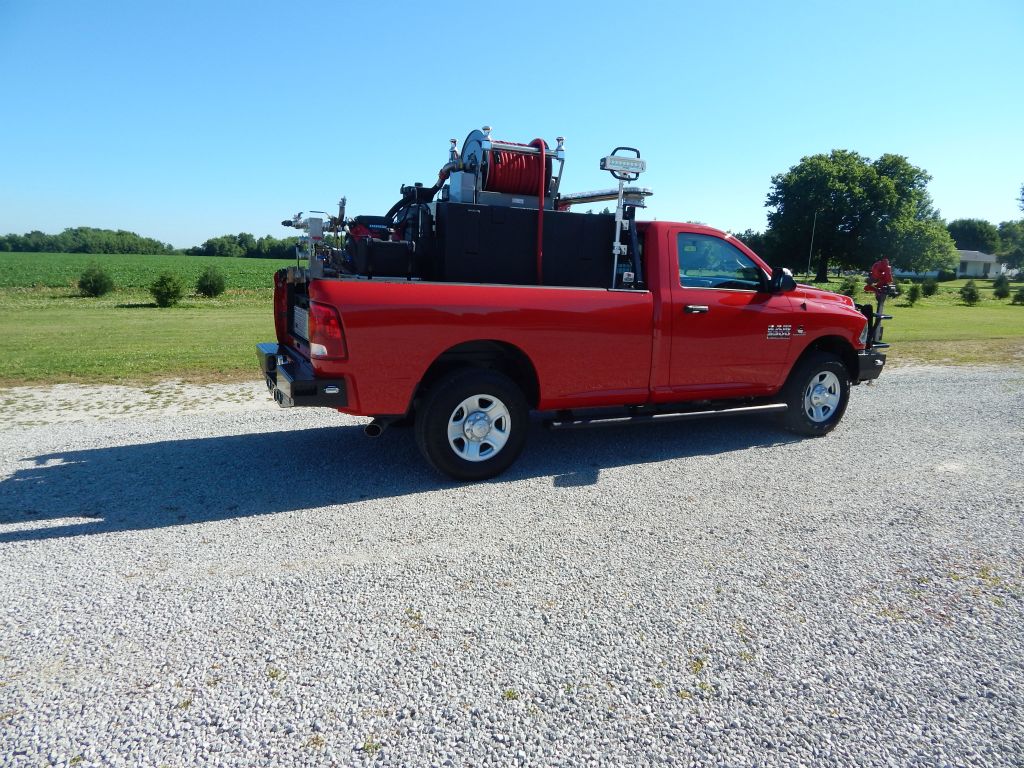

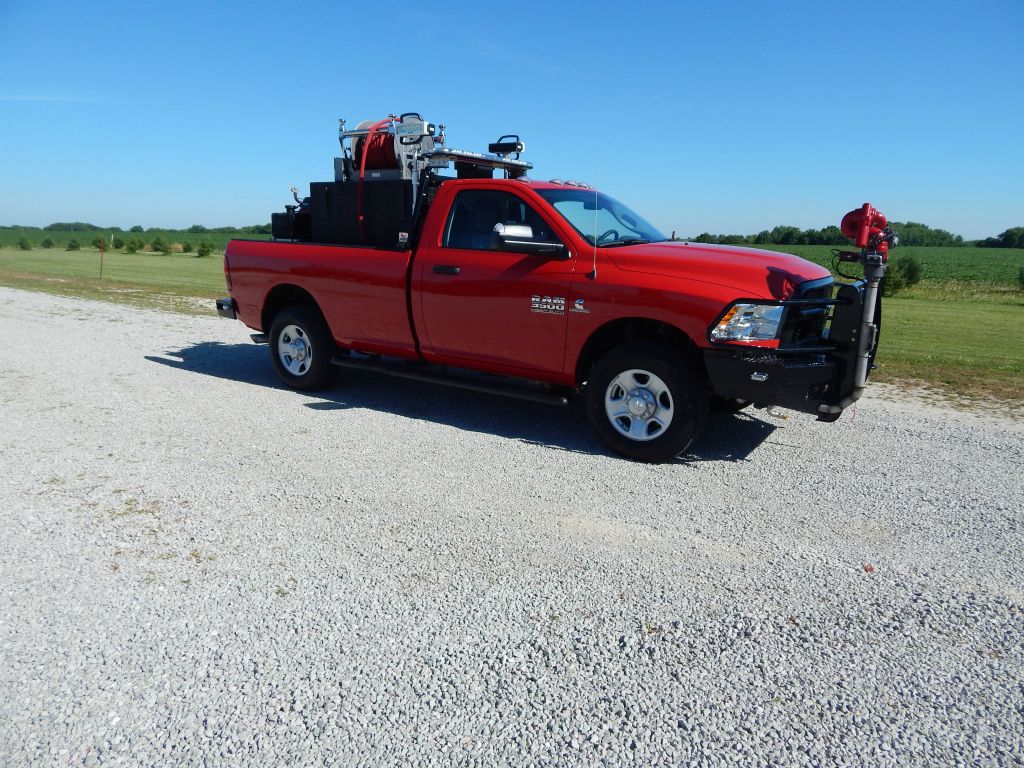

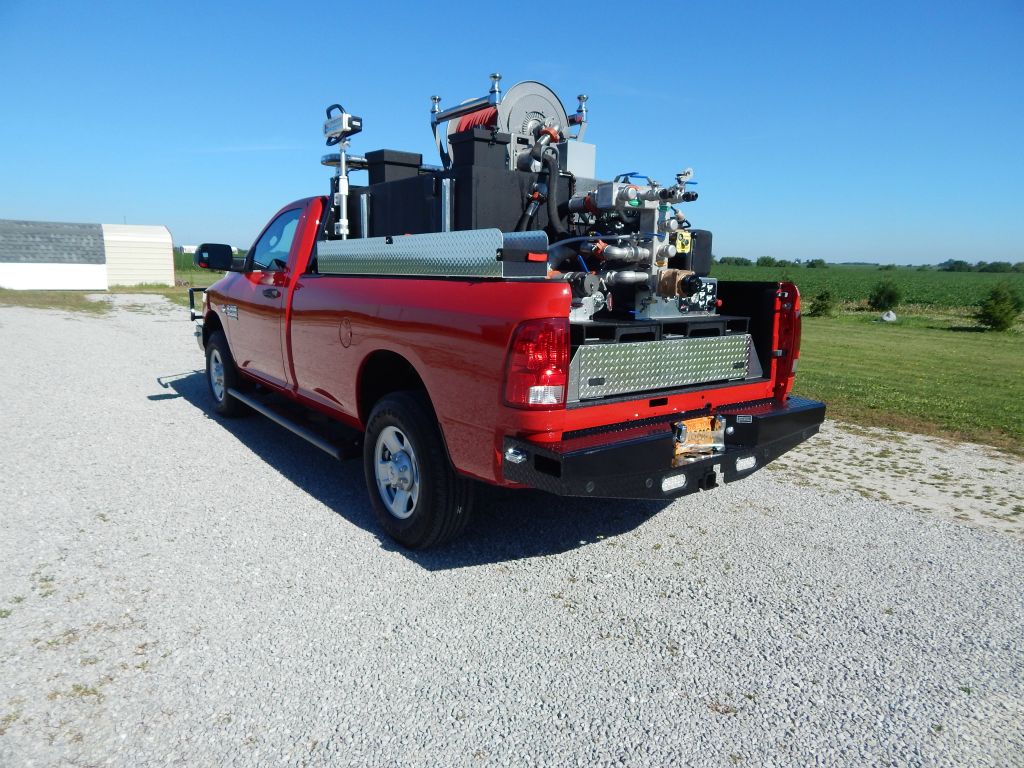

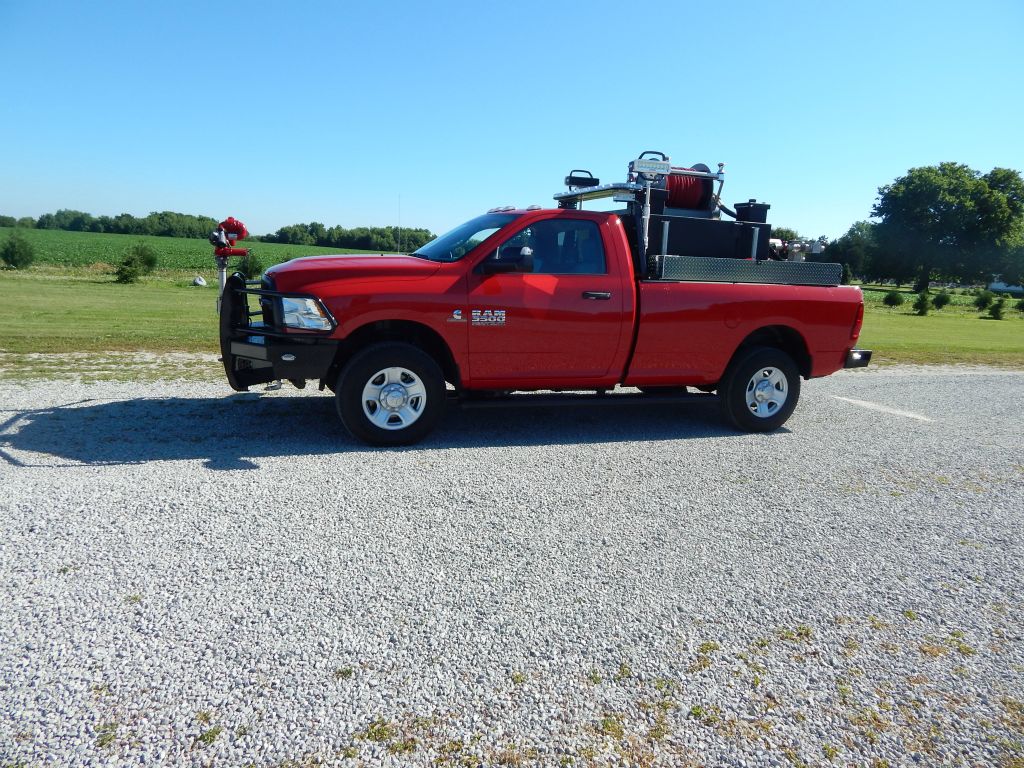

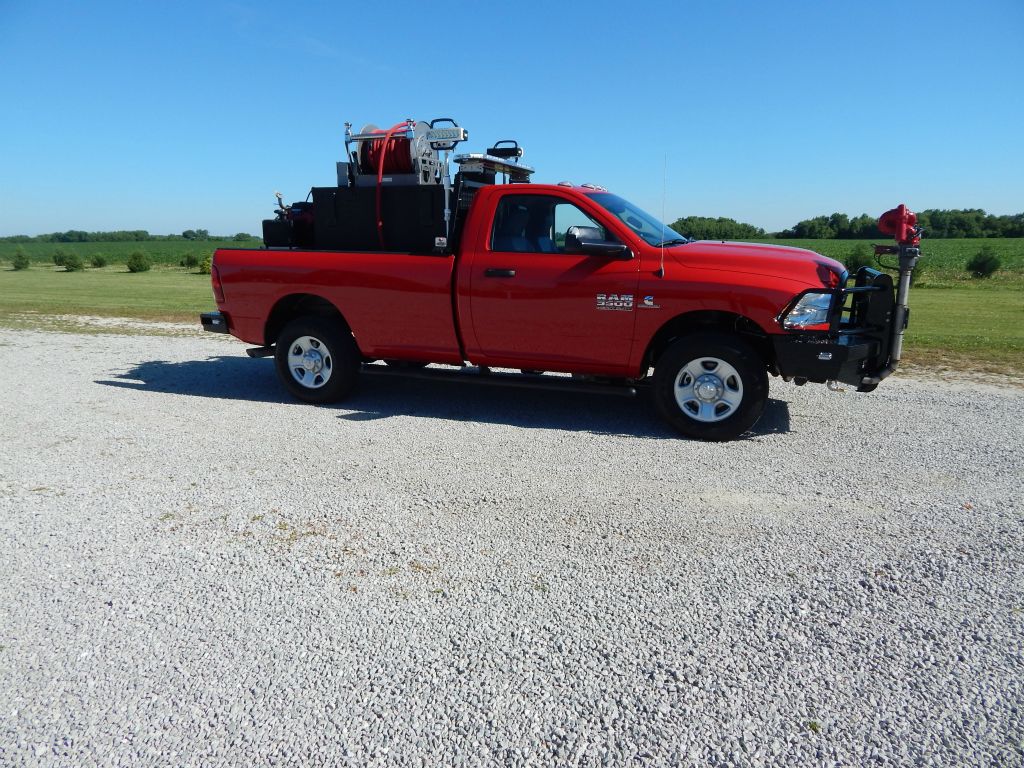

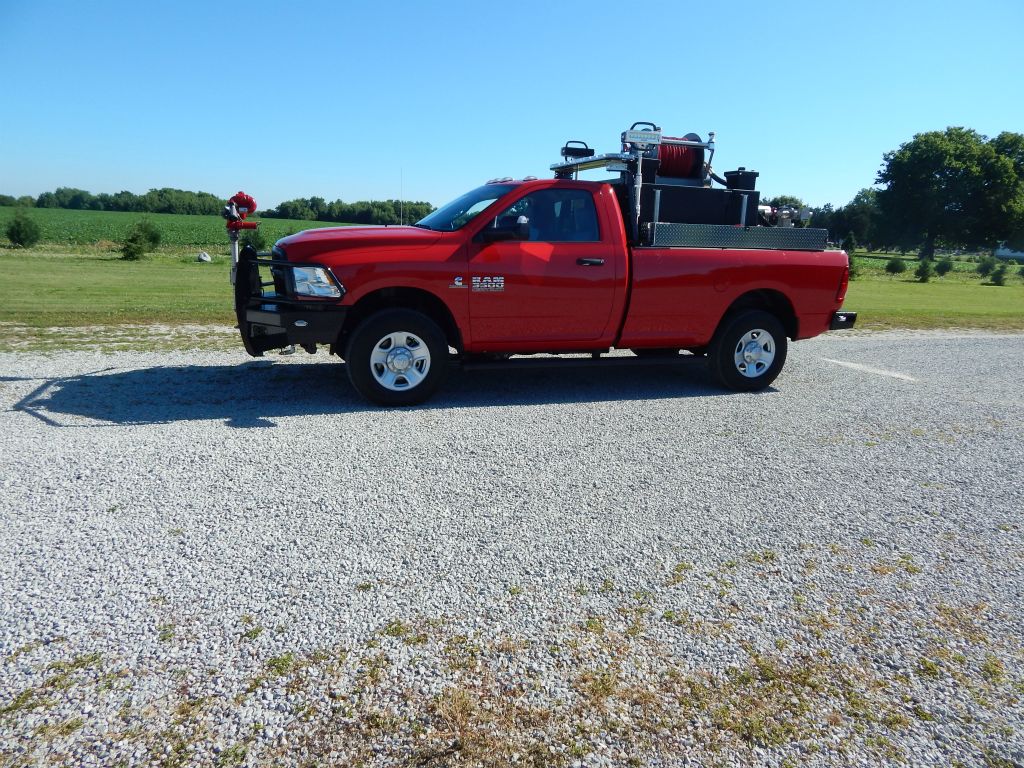

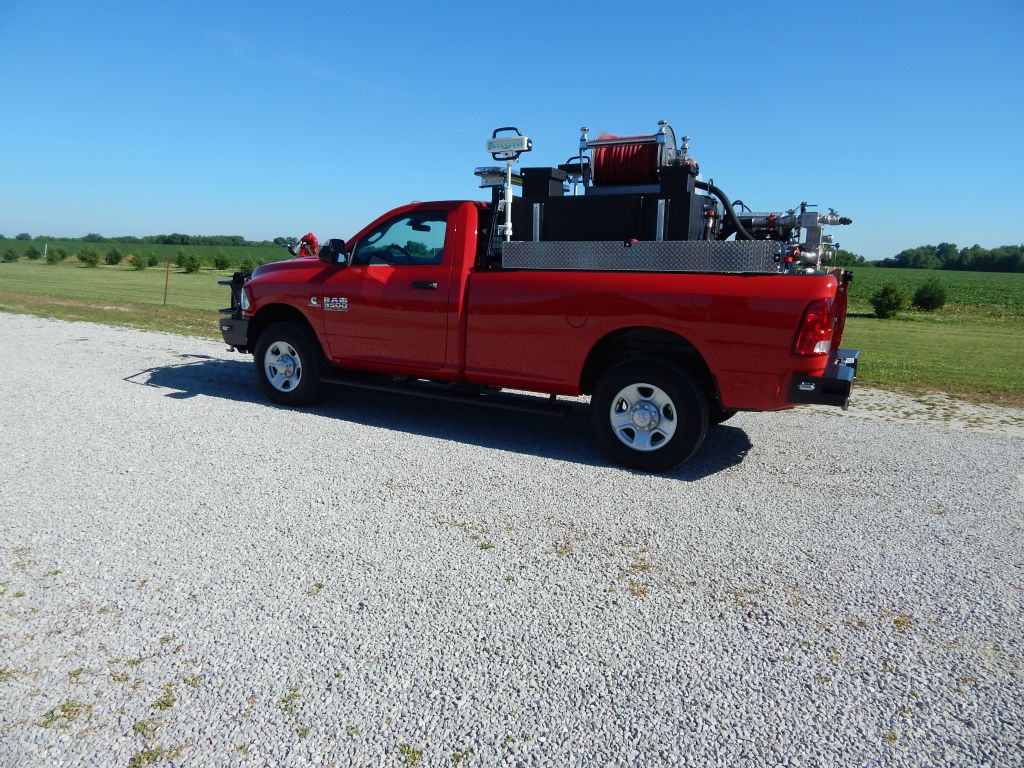

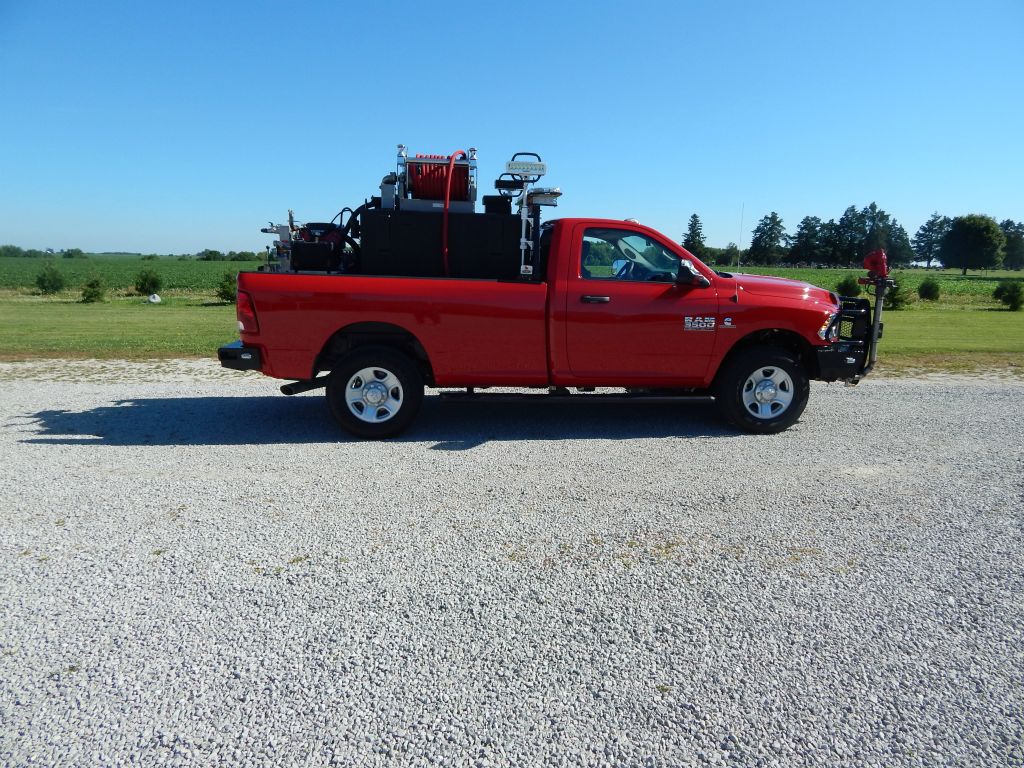

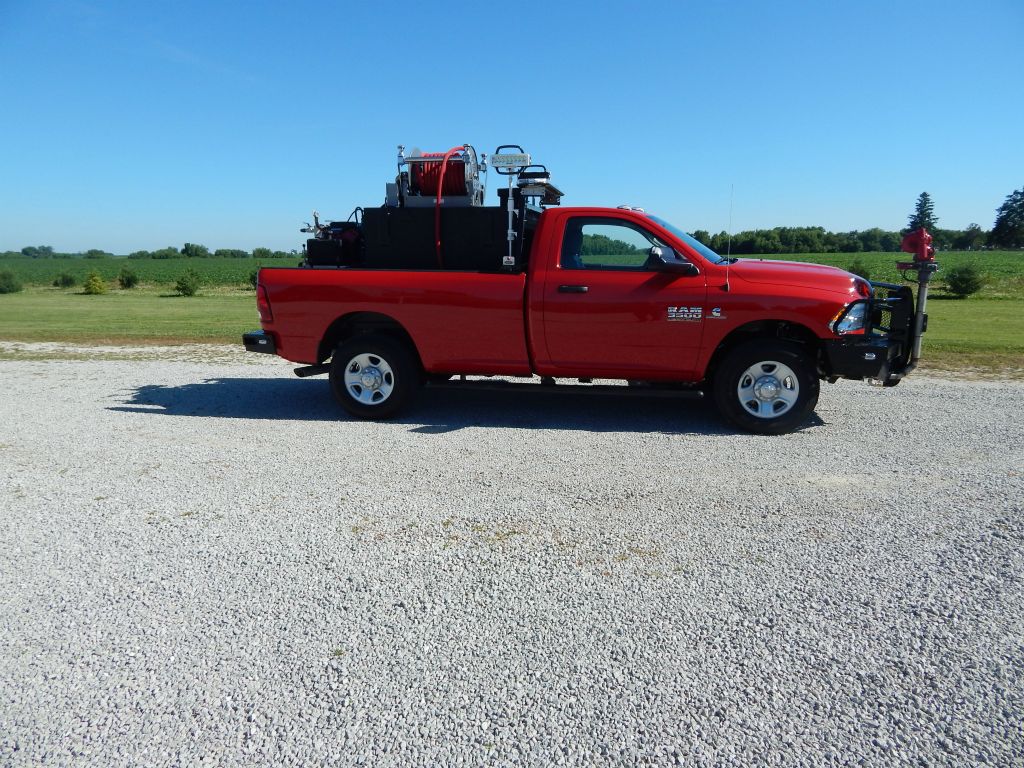

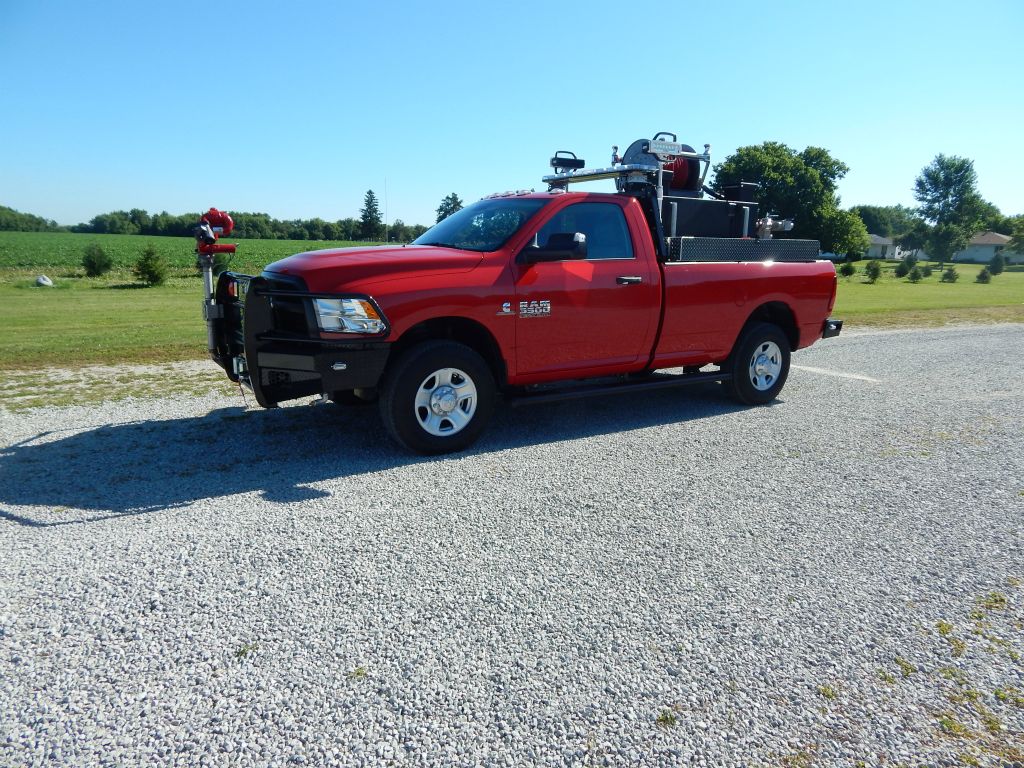

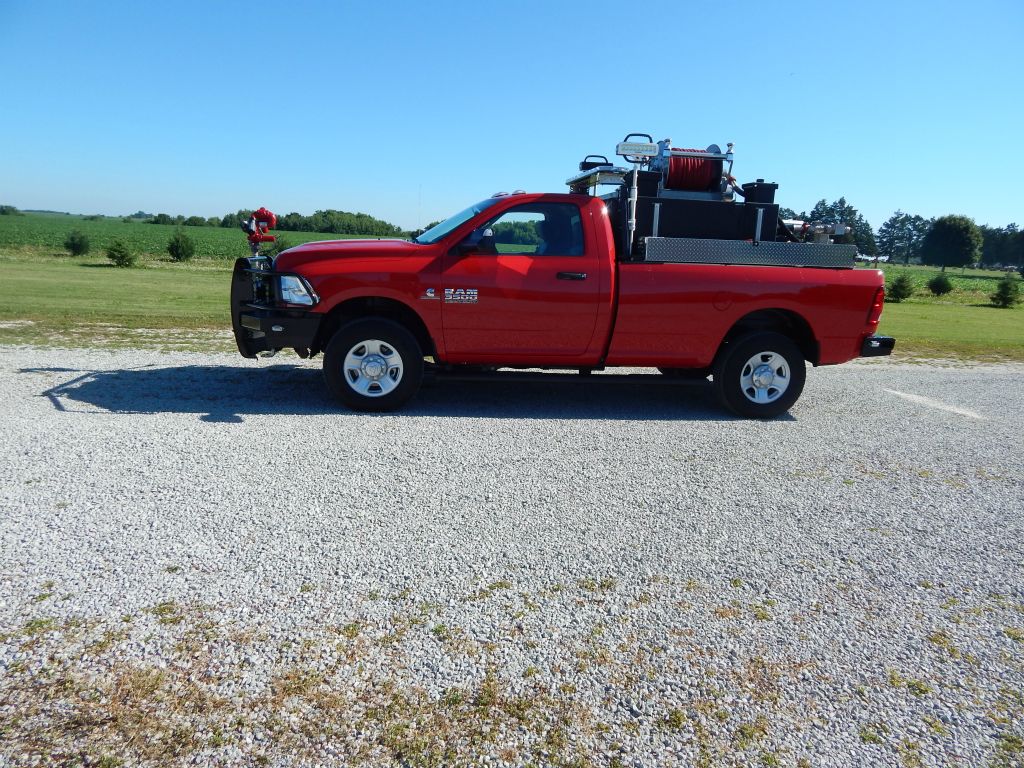

• Dodge 3500 Tradesman 4x4 Pick Up
• Cummins 6.7L, 350-HP Diesel Engine
• Aisin 6-speed Automatic Transmission

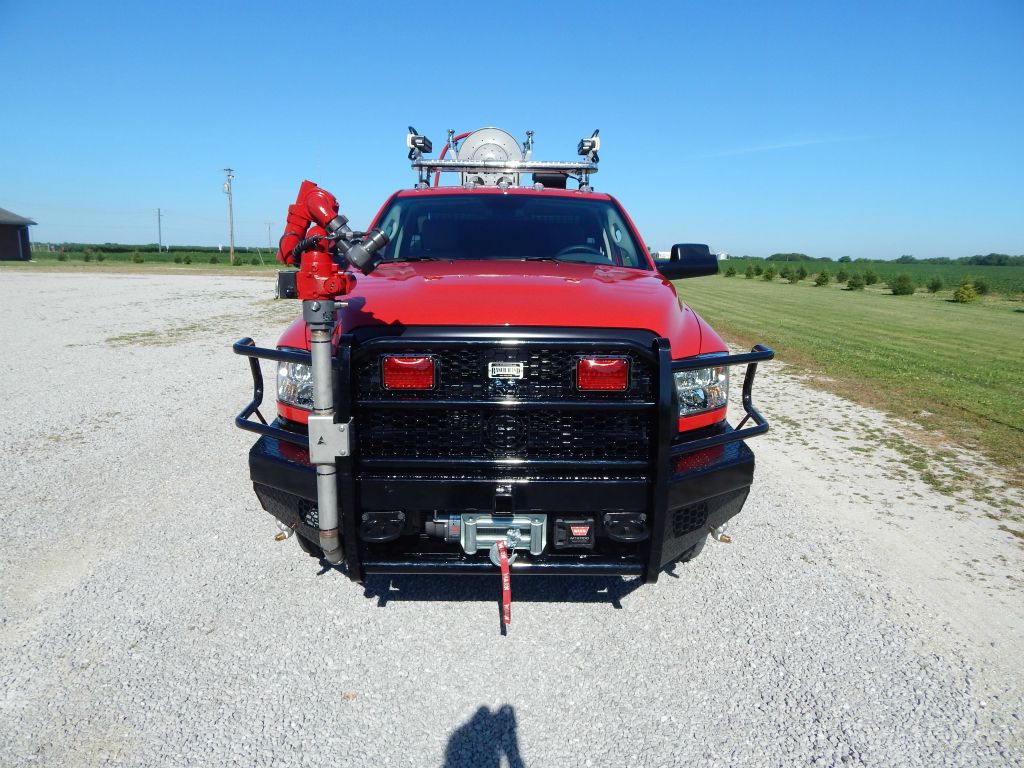

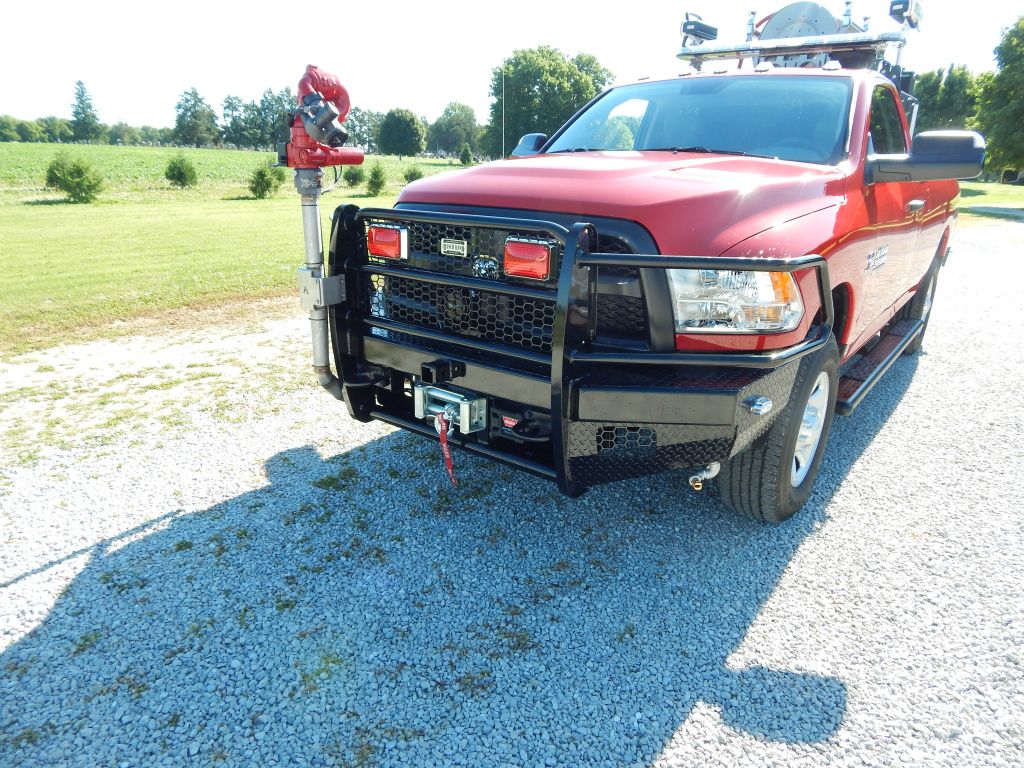

• Ranch Hand front bumper replacement with brush guard

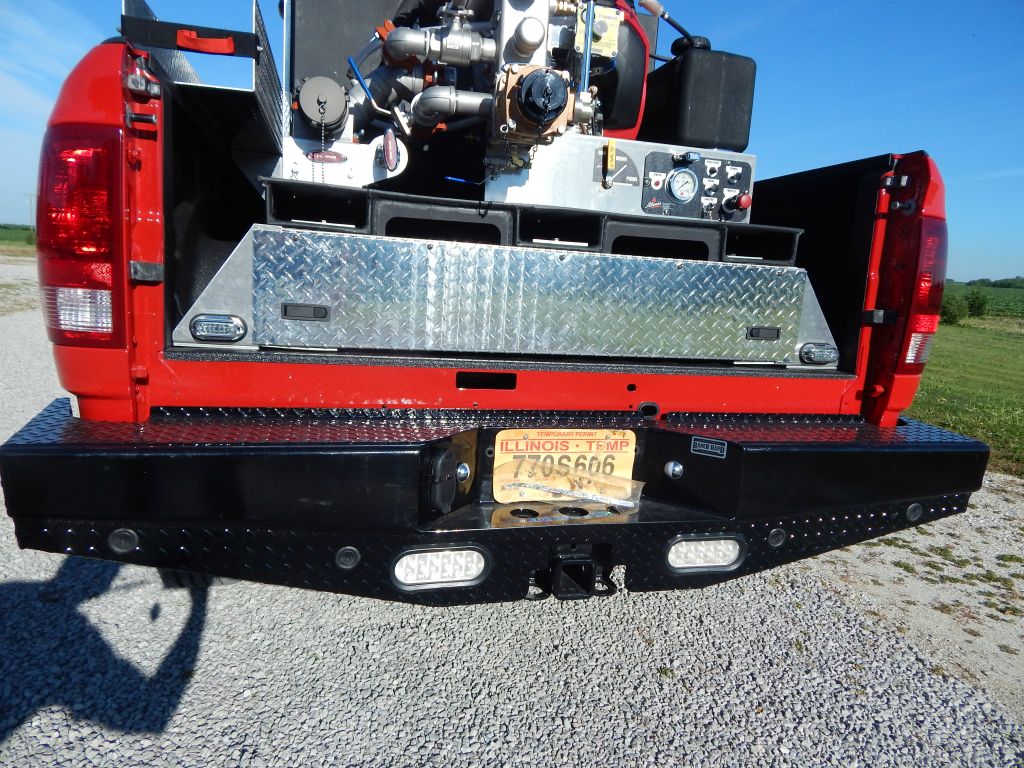

• Ranch Hand rear bumper replacement
• Back Rack cab protector
• Warn 12,000-lb winch

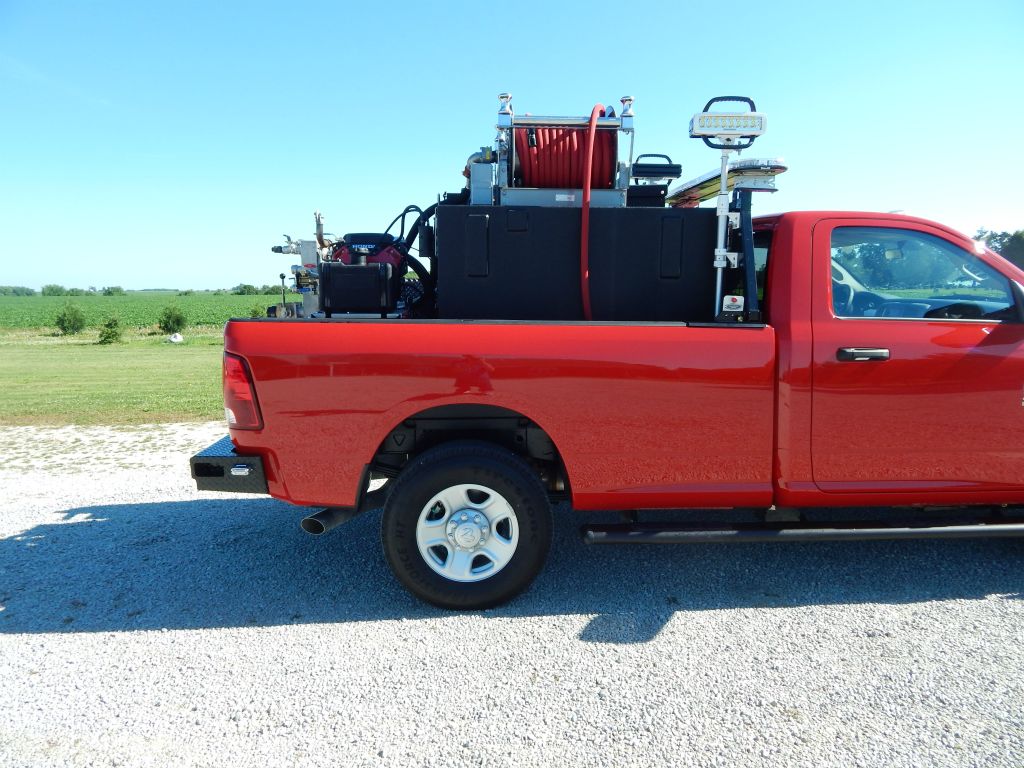

• 300-Gallon Poly Skid Tank with 10-Gallon Foam tank

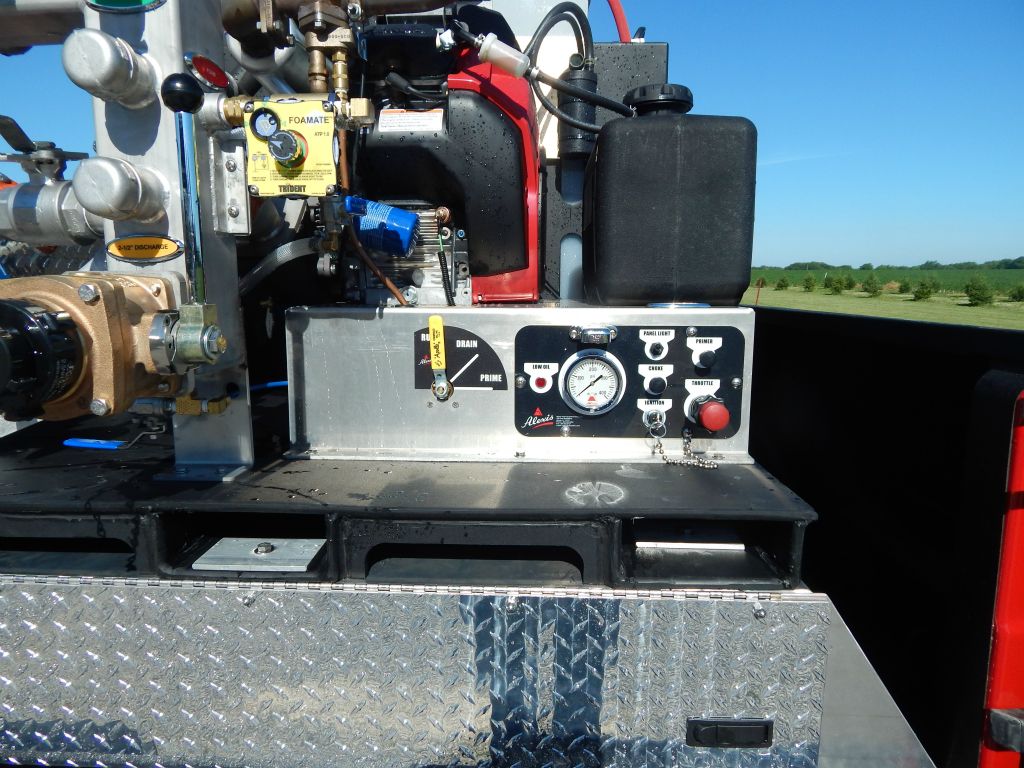

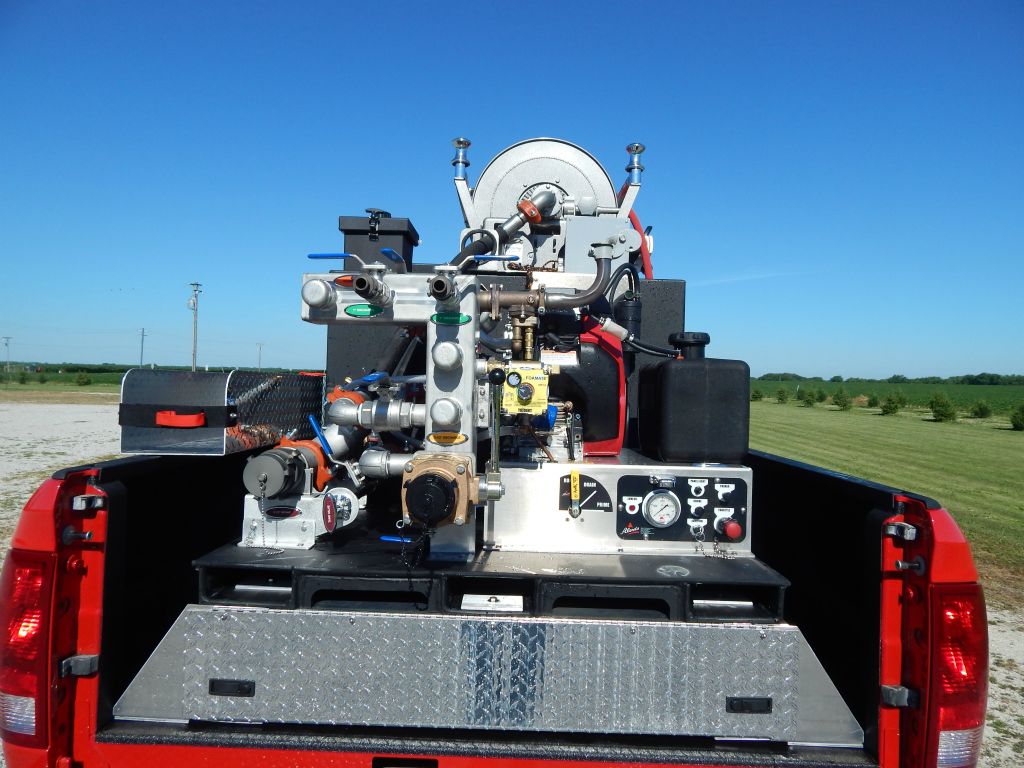

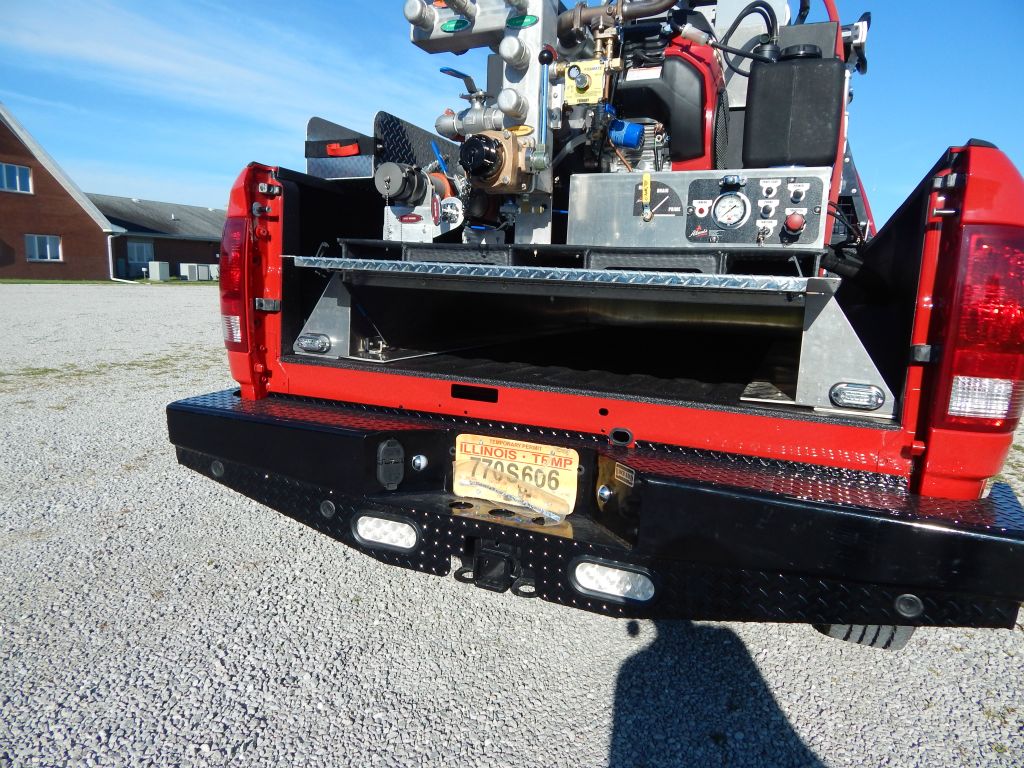

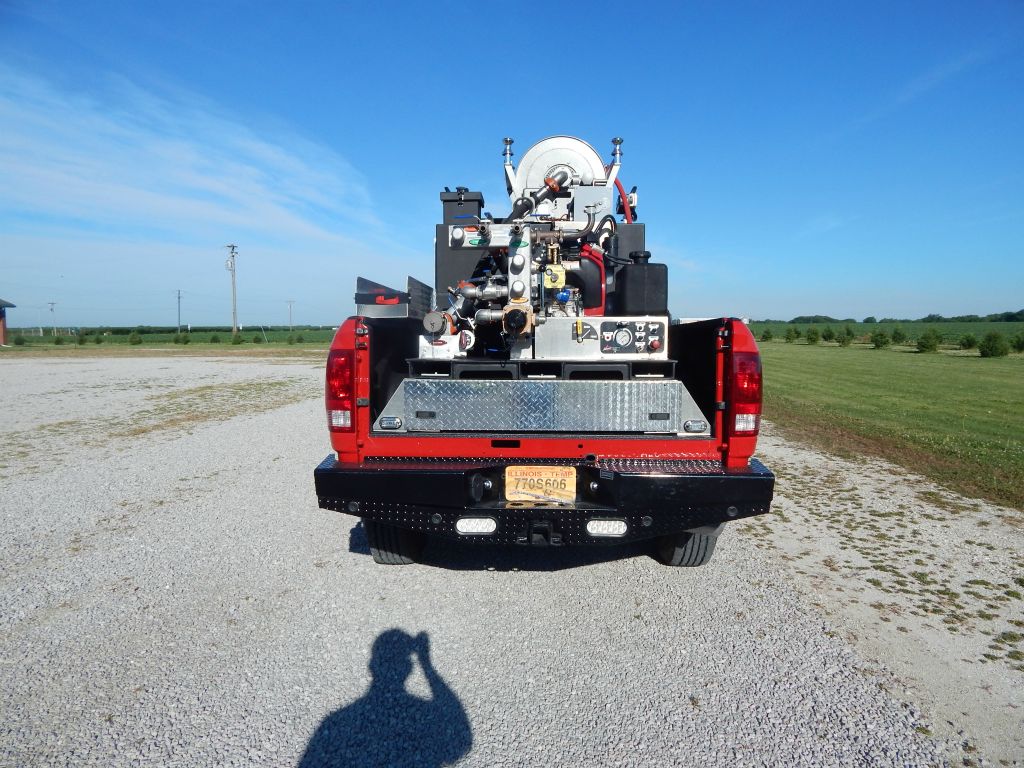

• Waterous PB18-3030LE Pump with 20-HP Honda Gasoline Engine
• One (1) 2 ½" Discharge, rear
• Two (2) 1" Discharges with 10-ft booster lines and nozzles
• One (1) 2 ½" Gated Suction, rear

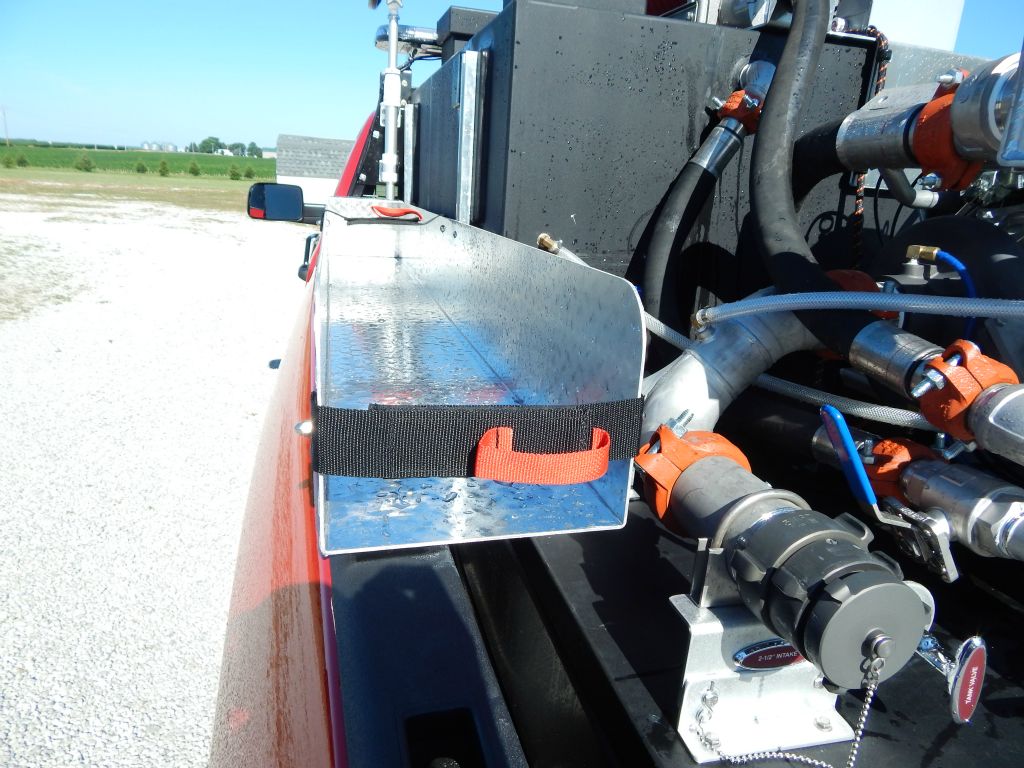

• One (1) Hose tray for 150-ft of 1 ¾" hose, right side of tank
• Trident "Foamate" Around the pump foam system

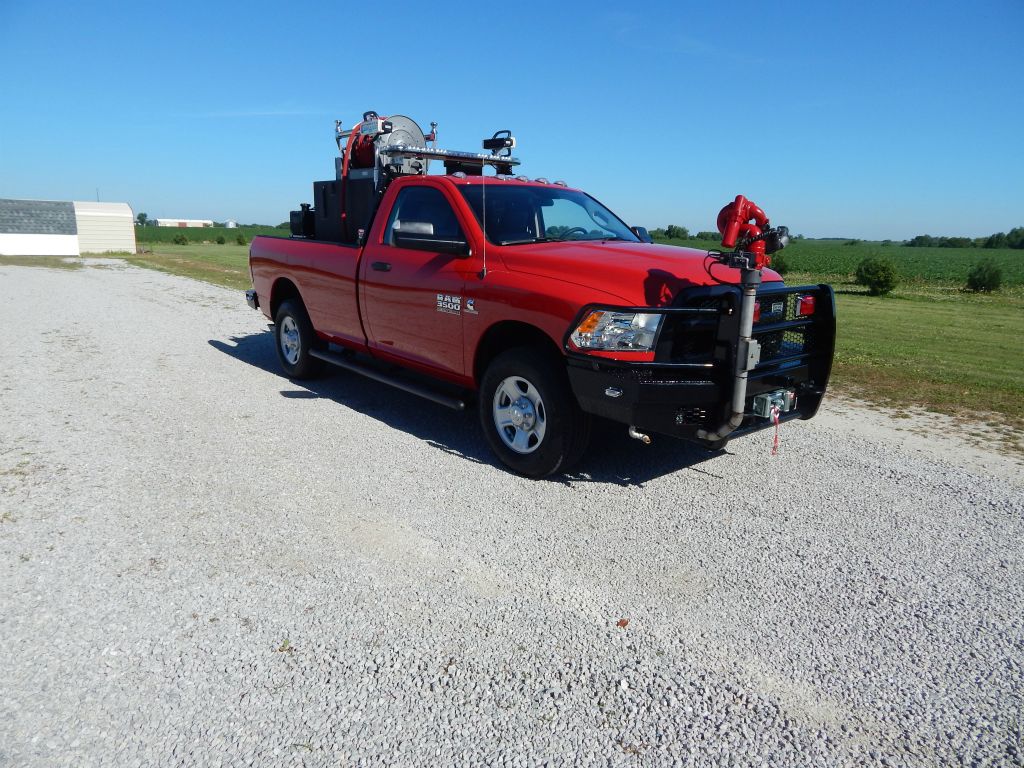

• One (1) Akron Front Turret controlled from the cab
• One (1) Hannay Electric Booster Reel with 150-ft of 1" hose

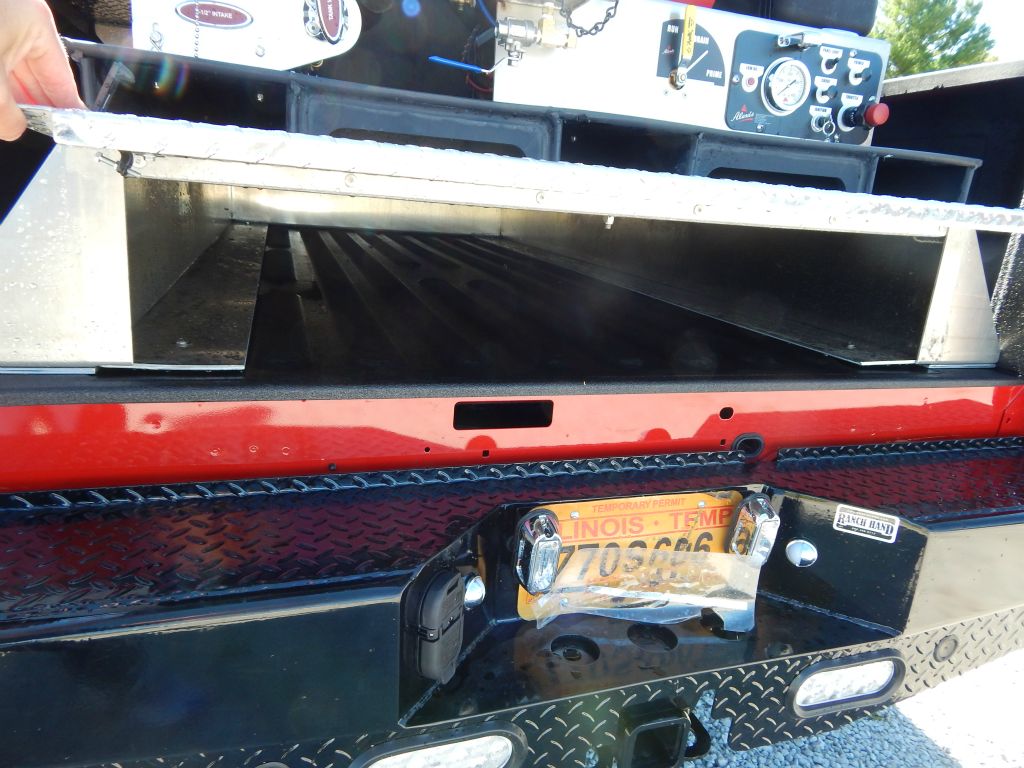

• Under Tank storage compartment for long handled tools

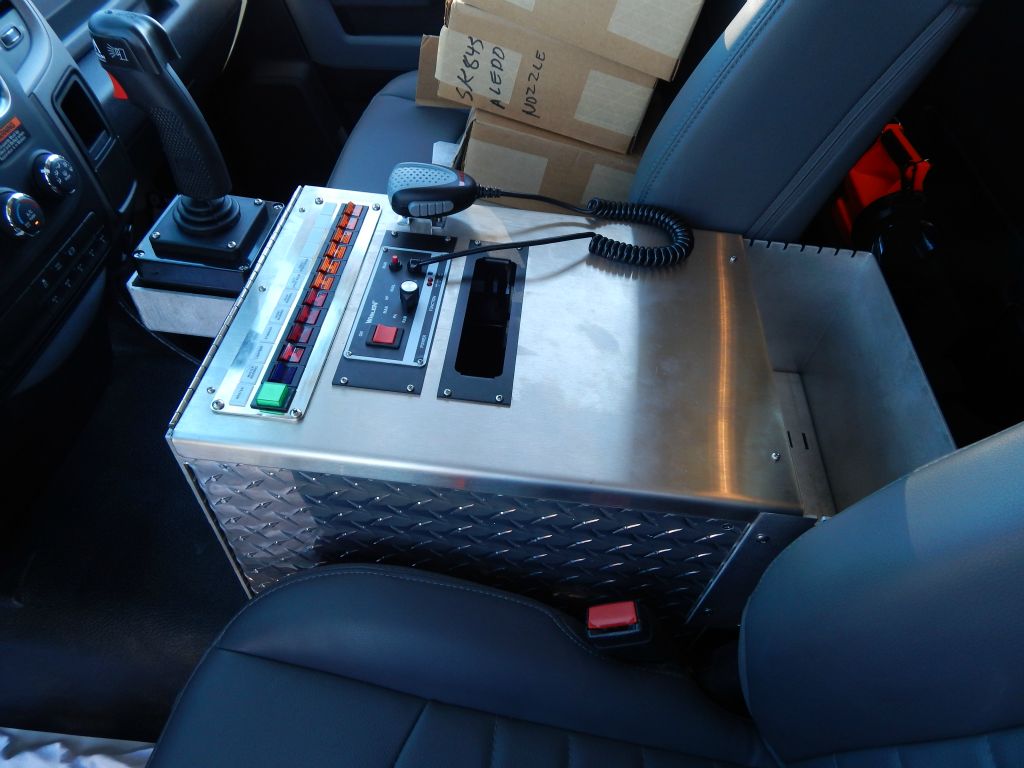

• Floor mounted console for emergency switches with map/binder storage, cab
• Whelen Electronic Siren with 100-watt Whelen speaker
• Two (2) Akron Extenda-Lite 12-volt 220-watt LED telescopic lights,
• Whelen LED Warning Light Package
• 140" Wheelbase
• 58" Cab to Axle
• 6,000 FAWR
• 7,000 RAWR
• 11,500 GVWR
