Aledo Fire Protection
District
Technical Specs

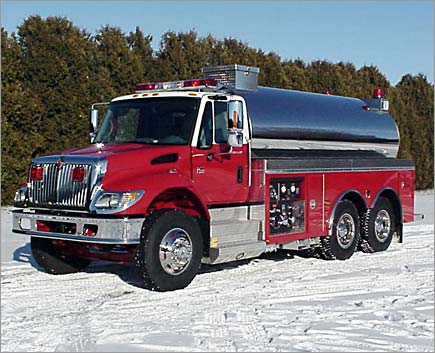

• International 7400 2-door
chassis
• International DT530 330 330 HP Diesel Engine
• Allison MD 3000 EVS Automatic Transmission
• 3000 gallon UPF Poly Elliptical Tank with Stainless
Steel wrap
• Hale AP 50 500 GPM Midship PTO Pump
• One (1) storage compartment each side
• Pump control panel located at the front on the
left side under the tank
• Two (2) Hose Trays above the compartments on
the left side
• Suction hose storage compartment on the right
side accessible from the rear
• Drop down Fol-Da-Tank bracket on the right side
• One (1) 10" Newton Dump at the rear
• One (1) 10" Newton Dump on each side accessible
behind hinged and latching doors
• Two (2) 2-1/2" and one (1) 5" tank
fills at the rear
• 10'-3" Overall Height
• 27'-0" Overall Length
• 14,000 FAWR
• 40,000 RAWR
• 54,000 GVWR
|
