Technical Specs

• HME 1871 W, MFDxL with 12” raised roof Chassis
• Cummins ISL9, 450-HP Diesel Engine
• Allison 3000 EVS Automatic Transmission
• Six (6) man cab seating with five (5) SCBA seats
• Stainless Steel Body
• ROM Painted Roll Up Doors
• 1000-Gallon Poly Tank
• Darley PSM 1500-GPM Pump

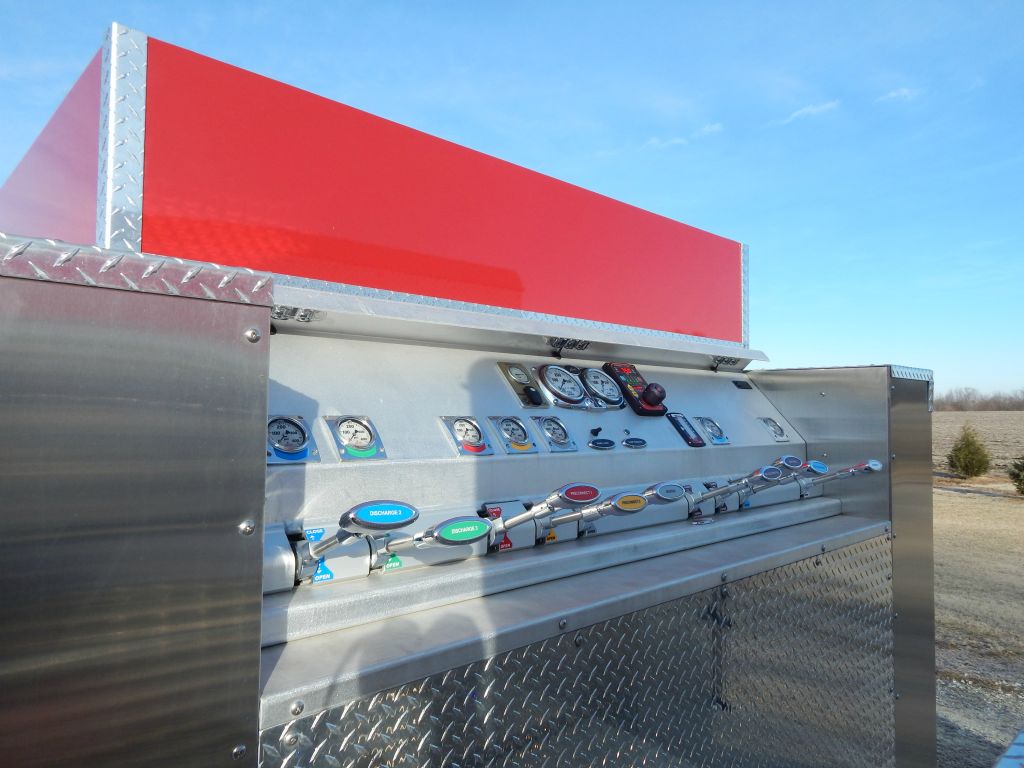

• Pump Operator’s panel across top of apparatus
• Two (2) 2 ½” Discharges, one (1) each side
• Three (3) 3” Discharges, one (1) right side, one (1) rear and one (1) over pump
• Two (2) 1 ½” Preconnects, behind chassis cab
• One (1) 2 ½” Gated Suction, left side
• Two (2) Dual bottle Air bottle compartments, one (1) each side wheel well
• One (1) Sure-Step top access ladder, rear mounted
• 24” Front bumper extension with Dual Air horns
• Ladder/Pike pole storage through the tank with rear access
• Kussmaul 1200 on-board battery charger/air compressor
• Kussmaul Super Auto Eject 120-volt shoreline connection
• Whelen Electronic Siren with Cast Products 100-watt speaker
• Whelen LED Warning Light Package
• Chevron pattern striping, rear
• 9’ 10” Overall height
• 33’ 2” Overall length
• 205” Wheelbase
• 145” Cab to Axle
• 18,000 FAWR
• 27,000 RAWR
• 45,000 GVWR
