Warrensburg Community
Fire Protection District
Warrensburg, Illinois
Technical Specs

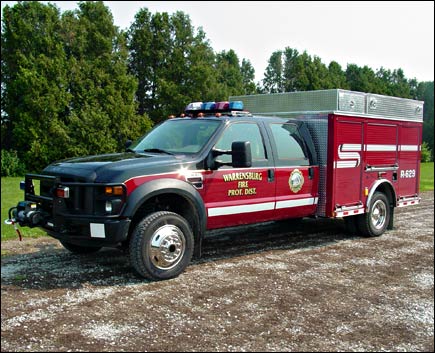

• Ford F-550, 4x4, 4-Door
Chassis with Dual rear wheels
• Ford 6.0L, V8 Power Stroke, 325-HP Diesel Engine
• Ford TorqShift 5-speed Automatic Transmission
• Heavy Duty 3/16" Aluminum Body
• UPF 300-Gallon Rectangular Poly Tank
• Hale HPX300, 150-GPM Pump with 18-HP Briggs &
Stratton gasoline engine
• Two (2) ¾" Discharges and Two (2)
1 ½" discharge
• One (1) Elkhart 95-GPM in-line Foam Eductor in
1 ½" Discharge
• Warner Black Brush Guard
• Ramsey QM 8000, 8000-pound Winch with front and
rear receivers
• ROM Roll UP Doors
• Two (2) top mounted storage compartments with
shoe box style doors
• Stokes Basket storage compartment, across top
of front compartments with shoe box style doors
• Backboard Rack in right side compartment
• Little Giant Ladder Rack in right side compartment
• Four (4) Walk-away Air Pak brackets, left side
compartment
• Hose Tray on top of poly-tank with capacity for
450' of 2 ½" hose
• Vanner 30-10 Automatic Battery charger/conditioner
• Kussmaul Super Auto Eject 120-volt Shoreline
• Four (4) FlameFighter walk-away Air Pak Brackets
• Four (4) Federal GHSCENE, large scene lights,
two (2) each side
• Two (2) Extenda-Light 120-volt, 500-watt Telescopic
Tripod lights
• Code-3 Siren with Federal speaker
• Code-3 Warning light Package
• 8' 1" Overall height
• 23' Overall length
• 176.2" Wheelbase
• 60" Cab to Axle
• 7,000 FAWR
• 13,660 RAWR
• 17,950 GVWR
|
