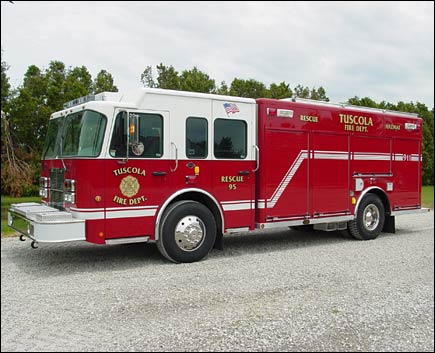

City Of Tuscola, Tuscola
Fire Department
Tuscola, Illinois
Technical Specs
• Spartan Big Easy MFD (medium
four door) 10" raised roof Chassis
• Caterpillar C7, 330-HP Diesel Engine
• Allison 3000 EVS Automatic Transmission
• Heavy Duty 3/16" Aluminum Body
• ROM Roll Up Doors
• Six (6) Upper storage compartments on the roof
with lift up doors, three (3) each side
• Zico fold down roof access ladder, rear
• Two (2) Bumper extension compartments with
treadplate covers, one (1) each side front bumper
• Winch center front bumper storage area with
cover
• Reese type trailer hitch/receivers, front and
rear
• Ramsey QM 9000, 9000-lb. winch
• Kussmaul 1200 Battery Conditioner with Viair
air compressor
• Kussmaul Super Auto Eject 20-amp electrical
receptacle
• Firecom Intercom system with six (6) headsets,
two (2) radio transmit capable
• One (1) Hannay Dual Hydraulic hose reel, top
of rear compartment
• Six (6) FlameFighter walk-away Air Pak brackets,
left side compartment
• Three (3) Air Bottle compartments, one (1)
left side and two (2) right side
• Onan 15-kw hydraulically driven Generator
• One (1) Akron electric cord reel with 200-ft.
of cord, right side compartment
• Four (4) Akron Brass Extenda Light 120-volt,
750-watt recess mounted floodlights
• One (1) Akron Brass Extenda Light 120-volt,
1000-watt telescopic tripod light
• One (1) Norcold 3.6-cu.ft. Refrigerator/Freezer,
left side compartment
• Cascade System with four (4) 6000-psi bottles,
right side control panel
• Dual Hadley Stuttertone 24" Air Horns,
front bumper extension
• Code-3 Electronic siren with Federal 100-watt
speaker
• Whelen Warning Light Package
• 9' 8" Overall height
• 31' 8" Overall length
• 200 /187"Wheelbase
• 146"/133" Cab to Axle
• 18,000 FAWR
• 27,000 RAWR
• 45,000 GVWR
|
