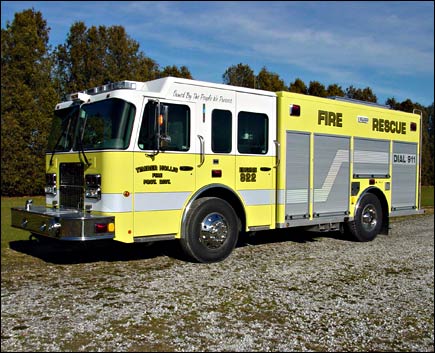

Timber Hollis Fire Protection
District
Glasford, IL
Technical Specs
• Spartan Advantage-Big
Easy Chassis
• Caterpillar C7, 330-HP Diesel Engine
• Allison 3000EVP Automatic Transmission
• Heavy Duty 3/16" Aluminum Body
• UPF 750-Gallon Rectangular Poly Tank
• Waterous CXVK-1250, 1250-GPM Pump
• Rear pump controls
• ROM Roll Up Doors
• Three (3) 2 ½" Discharges and One
(1) 4" Discharge
• Two (2) 1 ½" Cartridge lay Preconnects
• One (1) 2 ½" Preconnect in the front
bumper extension right side, with hose well
• One (1) 2 ½" Gated Suction, rear
• Two (2) Fire Extinguisher compartments, one each
side in rear wheel well
• Top Access Ladder mounted on the rear
• Two (2) Upper Storage compartments with lift
up doors, one (1) each side roof
• One (1) back board rack in front transverse compartment
• One (1) vertical pull-out board and one (1) swing
out tool board, left side
• Kussmaul Pump Plus 1200 small air compressor/battery
charger
• Kussmaul Super Auto Eject 120-volt shoreline
• Onan 15 k-W Hydraulically driven Generator
• One (1) Hannay 120-volt electric cord reel, right
side
• One (1) Extenda Light Beta 4000 recess mounted
flood light, front cab face
• Three (3) Extenda Light 120-volt recess mounted
flood lights, one (1) each side and one (1) rear
• Two (2) Hannay 12-volt rewind Dual Hydraulic
Hose Reels, right side
• 6000-watt Night Scan Powerlite Light Tower with
dual tilt
• Ladder, Pike Pole and suction hose Storage compartment
with rear access door
• Elkhart Vulcan Monitor system mounted in the
right corner above the pump panel
• Two (2) Hadley Stuttertone 24" Air Horns
behind front bumper
• One (1) Federal E-Q2B Electronic Siren with 200-watt
speaker
• Whelen Warning Light Package
• 9' 10" Overall height
• 30' Overall length
• 171" Wheelbase
• 117" Cab to Axle
• 18,000 FAWR
• 27,000 RAWR
• 45,000 GVWR
|
