Tilton Fire Protection
District
Technical Specs

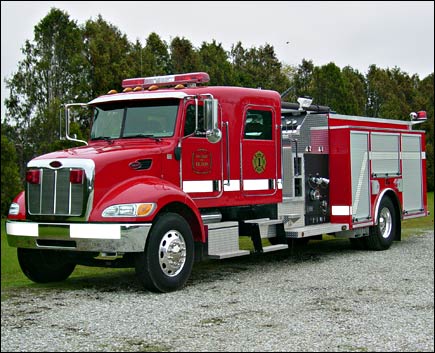

• Peterbilt Model 335 Crew
Cab Chassis
• Cummins ISC330 - 330 HP Diesel Engine
• Allison 3000 EVS-P Automatic Transmission
• Polished Aluminum Wheels
• Heavy Duty 3/16" Aluminum Body
• 1000 Gallon UPF Poly Tank IIE
• Hale DSD150 1500 GPM Stainless Steel Midship
Pump
• Top Mount Control Panel
• Hinged Pump Panels for Easy Access
• Two (2) 1-1/2" Cartridge Lay Preconnects
ahead of the pump
• High side compartments each side
• Two (2) Havis-Shield Magnafire 12V 350W Floodlights
• One (1) large Federal GHSCENE light mounted on
the rear
• Two (2) Unity 6" 5000 candle power rear
deck lights
• Hydraulic ladder rack on right side of apparatus
• Suction hose storage under the tank "T"
on the right side for one (1) 10' section
• Suction hose storage for One (1) 10' section
on hydraulic ladder rack
• Pike Pole storage on ladder rack
• PowerArc Warning Light package
• Class-1 "Krystal-Lite" Compartment
lighting
• 9'-11" Overall Height
• 33'-6" Overall Length
• 268" Wheelbase
• 146.2" Cab to Axle
• 12,000 FAWR
• 26,000 RAWR
• 38,000 GVWR
|
