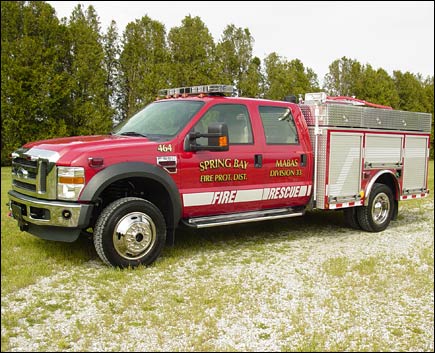

Spring Bay Fire Protection
District
Spring Bay, Illinois
Technical Specs
• Ford F-550 4-Door 4x4
Chassis
• Ford 6.4L V8, 325-HP Diesel Engine
• Ford Electronic 5-Speed Automatic Transmission
• Heavy Duty 3/16" Aluminum Demo Body
• UPF 235-Gallon stock Poly skid Tank with 12-Gallon
Foam tank
• Hale HPX200, 60-GPM Pump with 20-HP Honda gasoline
engine
• One (1) 2 ½" Discharge and one
(1) 1 ½" Discharge
• One (1) Hannay Electric Booster Reel with 150-ft.
of 1" hose
• One (1) Elkhart240, 60-GPM foam educator
• Two (2) Electrically controlled Spray Booms,
front bumper
• Luverne stainless steel running boards
• Front and Rear Reese type trailer hitches
• One (1) Ramsey QM8000, 8000-lb. Winch
• ROM Roll Up Doors
• Three (3) Storage compartments with lift up
doors on top of rescue body
• One (1) Hose Tray with capacity for 150-ft.
of 1 ½" hose, over left side of tank
• One (1) Air bag rack, right side upper front
compartment
• Vanner On Board 110-volt Automatic Battery
charger/conditioner
• One (1) Kussmaul Super Auto Eject120-volt shoreline
• Yamaha EF6000, used Generator
• Two (2) Akron Brass Extenda Light 120-volt
Telescopic lights, one (1) each side compartment front
• Code-3 Electronic Siren with 100-watt Federal
speaker
• Whelen Warning Light Package
• 7' Overall height
• 23' Overall length
• 176" Wheelbase
• 60" Cab to Axle
• 7,000 FAWR
• 13,660 RAWR
• 17,950 GVWR
|
