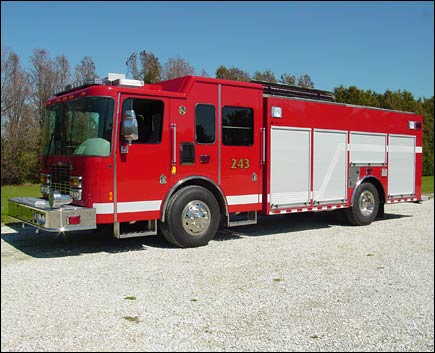

Shelby-Benona Fire District
Shelby, Michigan
Technical Specs
• HME 1871-P MFD 12"
Raised Roof Chassis
• Cummins ISL 350, 350-HP Diesel Engine
• Allison 3000 EVS Automatic Transmission
• Plastisol Glassfibre Reinforced Polyester Body
• 975-Gallon Tank with 20-Gallon foam tank Integral
with body
• Waterous S100C10, 1500-GPM Pump
• Three (3) 2 ½" Discharges and one
(1) 3" Discharge, rear
• Two (2) 3" Discharges, one (1) left side
and one (1) over pump for deck gun
• Three (3) 1 ½" Cartridge lay Preconnects,
front transverse compartment
• Foam Pro 2001 foam system
• Elkhart Deck Gun with extend-a-gun and portable
base, rear over pump panel
• One (1) Warn 9000-lb. Winch inside front bumper
compartment
• Two (2) Reese type trailer hitches for winch,
on (1) front and one (1) rear
• ROM Roll Up Doors
• Four (4) Upper storage compartments, two (2)
each side
• Two (2) Hannay Dual Hydraulic hose reels, one
(1) each side
• Three (3) Triple Air Bottle compartments, two
(2) right side and one (1) left side
• Zico Hydraulic Ladder Rack with two (2) suction
hose storage, right side
• Pull out drop down top access ladder, rear mounted
• Kussmaul 1200 Plus automatic battery charger/air
compressor
• Kussmaul Super Auto Eject 120-volt shoreline
• Smart Power HR 15 k-W Generator
• Two (2) Akron electric cord reels with 150-ft.
of 10/3 cord each, one (1) each side
• One (1) Hurst 240-volt power unit, left side
rear compartment
• One (1) Akron Brass Extenda-Lite 120-volt 500-watt
telescopic light
• Night Scan Profiler 4500 light tower with three
(3) 1500-watt halogen lights
• Four (4) Whelen Scene lights, one (1) each side
and two (2) rear
• Code-3 V-con Electronic Siren with Cast Products
100-watt speaker
• Federal Q2B mechanical Siren, front driver's
side
• Dual Grover Stuttertone Air Horns, front bumper
• Whelen Warning Light Package
• 10' 1" Overall height
• 31" 10" Overall length
• 189" Wheelbase
• 129" Cab to Axle
• 18,740 FAWR
• 27,000 RAWR
• 45,740 GVWR
|
