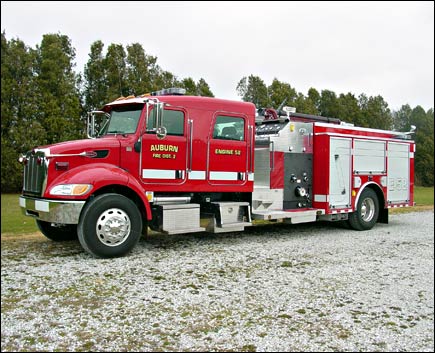

Shawnee County Fire
District #2
Auburn, Kansas
Technical Specs
• Peterbilt 340, 4-Door
Chassis
• Caterpillar C7, 330-HP Diesel Engine
• Allison 3000 EVP Automatic Transmission
• Heavy Duty 3/16" Aluminum Body
• UPF 1000-Gallon T-Type Poly Tank
• Hale QMAX 150, 1500-GPM Pump
• Five (5) 2 ½" discharges, two (2)
each side and one (1) rear
• Two (2) 2 ½" Gated suction, one (1)
each side
• Foam Pro 2001 Foam proportioning system with
two (2) 10-Gallon tanks
• One (1) Akron Apollo Deck Gun with Akron Automatic
Nozzle
• Two (2) 1 ½" Cartridge lay Preconnects
• On Spot Automatic Tire Chains
• Two (2) Soft suction Hose Wells, one (1) each
side in the running boards with Hypalon covers
• Four (4) Air Bottle Compartments, two (2) each
side
• ROM Roll Up Doors
• Zico Hydraulic Ladder Rack with attic ladder
and pike pole brackets, right side
• One (1) hard suction hose storage in rear compartment
and one (1) on ladder rack
• One (1) Electric Newton Tank Dump with 18"
Extension, rear
• Two (2) Hannay Electric Booster Reels with 100-ft.
of 1" hose, one (1) each side
• Kussmaul Pump Plus 1200 air compressor/battery
charger
• Kussmaul Super Auto Eject 120-volt shoreline
• Three (3) Federal GHSCENE Scene lights, one (1)
each side and one (1) rear
• Two (2) Unity Deck lights, rear
• Yamaha 6600-watt Gasoline Generator, right side
compartment
• Two (2) Extenda-Light 120-volt, 750-watt telescopic
flood lights, one (1) each side of pump module
• Two (2) Extenda-Light 120-volt, 500-watt telescopic
tripod flood lights, rear
• Two (2) Grover Air Horns, one (1) each side of
hood
• Federal Electronic Siren with 100-watt Federal
speaker
• Whelen Warning Light Package
• 9' 10" Overall height
• 33' 4" Overall length
• 268" Wheelbase
• 146.2" Cab to Axle
• 12,000 FAWR
• 26,000 RAWR
• 38,000 GVWR
|
