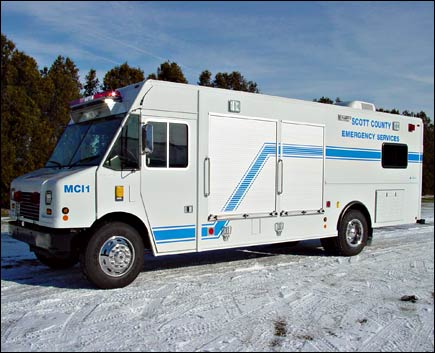

State Of Iowa/Scott
County EMS
Davenport, Iowa
Technical Specs
• Freightliner MT55, Walk-In
Van Chassis
• Cummins ISB230, 230-HP Diesel Engine
• Allison 2100 EV Automatic Transmission
• Two (2) 6" front window fans, one (1) each
side of window area
• Blackout Fire resistant curtains on all windows,
blocks light from unit to outside
• One (1) Reese type trailer hitch, rear tail step
• Two (2) Squad Benches, one (1) each side in the
apparatus rear area
• One (1) Command Desk with Bostrom swivel command
chair, two (2) drawer file and overhead two (2) door
cabinet, right side cab
• Two (2) Telephone landline inputs and three (3)
telephone extension locations
• Computer Network and Equipment
• Four (4) Interior cabinets, two (2) each side
above the squad benches
• One (1) Gun Cabinet, right side interior ahead
of the bench seat
• One (1) Tall (full height) Interior cabinet,
next to Gun cabinet
• One (1) Oxygen storage area, right side ahead
of the rear wheels
• One (1) Refreshment center in the front area
of the apparatus
• Four (4) Flush mount interior ceiling IV hooks
• Oxygen Hose installed in five (5) locations at
the squad bench area
• Two (2) Sliding Squad windows, one (1) each side
above rear benches
• ROM Roll Up Doors on exterior access compartments
• One (1) Stretcher Storage area with capacity
for four (4) stretchers, left front
• One (1) Backboard Rack in the left front exterior
compartment
• Six (6) Whelen large scene lights, two (2) each
side and two (2) rear
• Onan #CMQD8000, 8000-watt Diesel driven Generator
• One (1) Kussmaul Super Auto Eject 120-volt shoreline
• One (1) Akron 500-watt Brow light, front face
of chassis cab
• Two (2) Extenda-Light 120-volt 750-watt recess
mounted flood lights, one (1) each side
• Two (2) Extenda-Light 120-volt 500-watt Telescopic
Tripod flood lights, rear
• Code 3 Electronic Siren with 100-watt Federal
speaker
• Power Arc Warning Light Package
• 10' 7" Overall height
• 31' 7" Overall length
• 218" Wheelbase
• 9,000 FAWR
• 17,500 RAWR
• 26,000 GVWR
|
