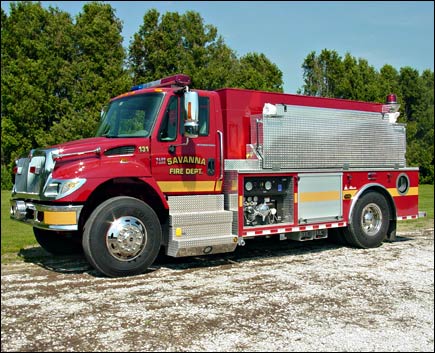

Savanna Fire Department
Savanna, Illinois
Technical Specs
• International 7400, 2-Door
Chassis
• International DT570, 330-HP Diesel Engine
• Allison 3000EVS Automatic Transmission
• Heavy Duty 3/16" Aluminum Body
• UPF 2000-Gallon Wetside Poly Tank
• Hale PSD100, 1000-GPM Pump
• Left side Pump controls under Tank
• On Spot Automatic tire chains
• Two (2) 2 ½" Discharges, one (1)
left side and one (1) rear
• One (1) 2 ½" Gated Suction, left
side
• Two (2) 1 ½' Preconnects, left side
• ROM Roll Up Doors
• Two (2) EJ Metals 10" round Tank Dumps with
extensions, One (1) left side and one (1) rear
• Kussmaul Pump-Plus Ho, air compressor/battery
charger
• Kussmaul Super Auto Eject 120-volt shoreline
• Two (2) Grover Air Horns, one (1) each side of
hood
• Four (4) Federal GHSCENE large scene lights,
One (1) each side and two (2) rear
• Hinged Folding Tank bracket for 2100-Gallon tank,
left side
• Attic Ladder bracket with extension and roof
ladder brackets, right side
• Q2B Siren, center of bumper
• PowerArc Warning light Package, Upper
• Code-3 Warning Light package, Lower
• 9' 7" Overall height
• 25' Overall length
• 191" Wheelbase
• 123.9" Cab to Axle
• 14,000 FAWR
• 30,000 RAWR
• 44,000 GVWR
|
