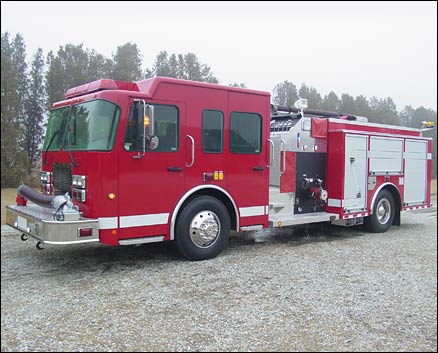

Prophetstown Fire Protection
District
Prophetstown, Illinois
Technical Specs
• Spartan Big Easy MFD (medium
four door) with 10" raised roof Chassis
• Cummins ISC 330, 330-HP Diesel Engine
• Allison 3000EV Automatic Transmission
• Heavy Duty 3/16" Aluminum Body
• UPF 1000-Gallon T-type Poly Tank
• Hale QMID125, 1250-GPM Pump
• Top Mount Pump Operators Panel
• Two (2) 2 ½" Discharges, left side,
one (1) 2 ½" Discharge, right side and one
(1) 2 ½" Discharge, rear
• One (1) 3" Discharge, right side and one
(1) 3" Discharge for deck gun over pump
• One (1) 5" Front Suction and one (1) 2
½" Gated Suction, left side
• One (1) 2 ½" Mattydale Preconnect
with Hypalon cover
• Two (2) 1 ½" Cartridge Lay Preconnects
with Hypalon cover and tray capacity for 200-ft. of
1 ¾" hose each
• FoamLogix 2.1 Foam proportioning system with
15-Gallon foam tank
• One (1) Fol-da-tank low level strainer, rear
compartment
• One (1) Soft Suction Hose well with Hypalon
cover, right side running board
• ROM Roll Up Doors
• Zico Hydraulic Ladder rack with attic ladder
bracket, right side
• Three (3) Air bottle compartments, one (1)
left side and two right side
• One (1) hard suction hose storage compartment
with rear access and one (1) storage on hydraulic ladder
rack
• One (1) Kussmaul Air Eject
• Vanner On Board 110-volt Battery charger/conditioner
• One (1) Kussmaul Super Auto Eject 120-volt
shoreline
• Two (2) Whelen large scene lights, one (1)
each side
• Two (2) Unity Deck Lights, rear
• Two (2) Akron Brass Extenda-Lite 12-volt 150-watt
telescoping lights
• Dual Hadley 24" air horns, behind front
bumper extension
• One (1) Federal Electronic Siren with 100-watt
Federal speaker
• Whelen Warning Light Package
• 9' 7" Overall height
• 32' 8" Overall length
• 200" Wheelbase
• 146" Cab to Axle
• 18,000 FAWR
• 24,000 RAWR
• 42,000 GVWR
|
