Town Of Pelham
Pelham Fire Department
Pelham, New Hampshire

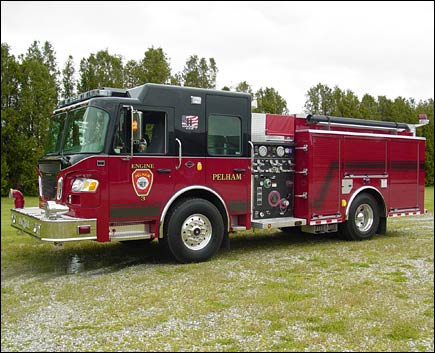

Technical Specs
• Spartan Diamond SMFD
(short medium four door) 10" raised roof Chassis
• Cummins ISL400, 400-HP Diesel Engine
• Allison 3000EVS Automatic Transmission
• Heavy Duty 3/16" Aluminum Body
• UPF 1000-Gallon T-type Poly Tank with 20-Gallon
foam tank
• Hale QMAX150, 1500-GPM Pump
• Three (3) 2 ½" Discharges, one
(1) each side and one (1) rear
• One (1) 4" Discharge, right side
• Three (3) Mattydale Preconnects, two (2) 1
1/2" and one (1) 2 ½"
• One (1) 1 ½" Preconnect, front
bumper
• Two (2) 2 ½" Gated suctions, one
(1) each side and one (1) 5" front suction
• Foam Pro 2002 automatic foam proportioning
system
• One (1) 3" Discharge over pump compartment
for deck gun
• One (1) TFT Crossfire monitor deck gun
• ROM Roll Up Doors
• Map box and EMS compartment installed in the
chassis cab interior
• PAC TRAC tool mounting system
• Quick couple air connection for air tools at
the pump panel
• Three (3) Dual Air bottle compartments, two
(2) right side one (1) left side
• Ladder brackets with Attic ladder bracket and
two (2) Suction hose gutters
• Kussmaul Pump Plus 1200 air compressor/battery
charger
• Kussmaul Super Auto Eject 20-amp shoreline
• Four (4) Whelen large scene lights, two (2)
each side
• Onan 10-kW Hydraulically driven Generator
• One (1) Hannay 120-volt electric cord Reel
with 200-ft of 12/3 cord
• Two (2) Kwik-Raze Magnafire 3000, 120-volt
750-watt, one (1) each side of cab
• Dual Grover Stuttertone 24" Air Horns,
recessed in front bumper
• Whelen Electronic Siren head with Two (2) Cast
Products100-watt speakers
• Federal Q2B 10" Electric Siren, front
bumper
• Whelen Warning Light Package
• 9' 8" Overall height
• 30' Overall length
• 166" Wheelbase
• 121" Cab to Axle
• 21,500 FAWR
• 27,000 RAWR
• 48,500 GVWR
|
