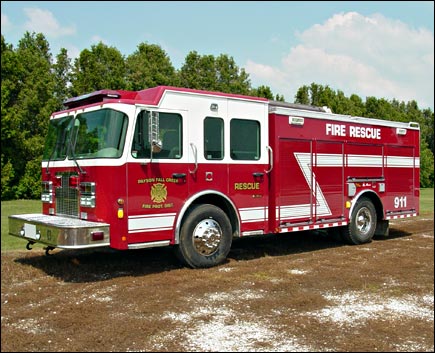

Payson-Fall Creek Fire
Protection District
Payson, Illinois
Technical Specs
• Spartan Advantage-Big
Easy 10" raised roof Chassis
• Cummins ISC-330, 330-HP Diesel Engine
• Allison 3000-EV Automatic Transmission
• Heavy Duty 3/16" Aluminum Body
• UPF 750-Gallon Rectangular Poly Tank
• Hale PSD100, 1000-GPM Pump
• Rear pump controls
• On Spot automatic tire chains
• ROM painted Roll Up Doors
• Three (3) 2 ½" Discharges, rear and
One (1) 2 ½" Discharge, upper rear
• Two (2) 1 ½" Cartridge Lay Preconnects
in front transverse compartment
• One (1) 1 ½" Preconnect in the front
bumper extension
• Three (3) air bottle compartments, one (1) left
side and two (2) right side
• Backboard rack with capacity for three (3) backboards
• Stokes storage rack with capacity for one (1)
stokes basket
• Four (4) Upper Storage compartments with lift
up lids, two each side on the roof
• Top Access Ladder mounted on left rear
• Two (2) storage compartments, one (1) each side
in the front bumper extension
• Kussmaul Pump-Plus 1200 air compressor/battery
charger
• Kussmaul super auto eject 120-volt shoreline
• Four (4) Federal GHSCENE large scene lights,
one (1) each side and two (2) rear
• Onan 10-kW hydraulically driven generator
• Four (4) Extenda-Lite 120-volt flood lights,
two (2) each side
• One (1) Extenda-Lite 750-watt quartz telescopic
tripod flood light, right rear
• Zico hydraulic ladder rack with one (1) set of
Zico pike pole brackets
• Two (2) Hadley Stuttertone 24" Air Horns
in front bumper extension
• Code-3 electronic siren with Federal speaker
• PowerArc Warning light package
• 10' 3" Overall height
• 30' 8" Overall length
• 171" Wheelbase
• 117" Cab to Axle
• 18,000 FAWR
• 27,000 RAWR
• 45,000 GVWR
|
