Ogle-Lee Fire Protection
District
Rochelle, Illinois
Technical Specs

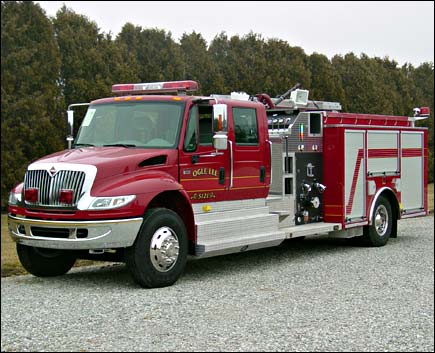

• Alexis Engine One Apparatus
• International 4400 SBA 4 x 2 Chassis
• International DT570 330HP Diesel Engine
• ALLISON 3000 EVS_P Automatic Transmission
• 1000 Gallon Booster Tank
• Heavy Duty 3/16" Aluminum Body
• Hale QFLO125 1250 GPM Top Mount Pump
• ENFO III Engine Information Display for pump
panel
• Akron Apollo monitor deck gun
• Class 1 107819 NPT Stainless Steel intake relief
valve
• Class 1 "Captain" engine/pump governor
• Individual 2½" line discharge gauges
• One 2½" discharge on right side
• One 3" discharge on right side
• One 2½" discharge at rear
• Three (3) inch tank to pump line
• Hale Master intake valve
• One Mattydale deadlay
• Two 1½" Cartridge Lay Preconnects
• Four (4) Air Bottle Compartments
• Robinson Roll Up Doors
• Class 1 Krystal-Lite tube lighting for compartments
• One (1) 1000 lb capacity Roll Out Tray
• Newton 36" manually controlled dump extension
• Multiplex Electrical System
• Smart programmable Switch Panels
• Kussmaul PUMP-PLUS HO
• 120-Volt shoreline connection
• 12-Volt floor mounted console
• Federal Model PA 300 MSC Siren
• Federal MS100-01 100 Watt Speaker
• Federal Model 210339 12-Volt electronic backup
alarm
• Powerall 5000 Watt Generator - Under Hood
• Zico Hydraulic Assisted Ladder Rack
• 9'-8" Overall Height
• 32'-8" Overall Length
• 258" Wheelbase
• 147" Cab to Axle
• 12,000 FAWR
• 26,000 RAWR
• 38,000 GVWR
|
