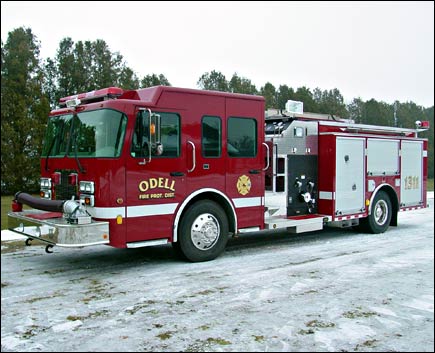

Odell Fire Protection
District
Odell, Illinois
Technical Specs
• Spartan Advantage-Big
Easy MFD (medium four door) 10" raised roof Chassis
• Cummins ISC 330, 330-HP Diesel Engine
• Allison 3000EVP Automatic Transmission
• Heavy Duty 3/16" Aluminum Body
• UPF 750-Gallon Rectangular Poly Tank
• Hale QMID125, 1250-GPM Pump
• Four (4) 2 ½" Discharges, two (2)
left side, one (1) right side and one (1) rear
• One (1) 3" Discharge on the deck for Deck
Gun
• One (1) 2 ½" Gated suction, left
side
• One (1) 5" front suction Preconnect with
low level strainer
• Two (2) 1 ½" speedlay Preconnects
• One (1) 2 ½" preconnect in the
front bumper extension
• One (1) 2 ½" Tank Fill with Fireman's
friend valve, rear
• ROM Roll Up Doors
• Kussmaul Pump-Plus 1200 air compressor/battery
charger
• Kussmaul Super Auto Eject 120-volt shoreline
• Three (3) Air bottle compartments, two (2)
right side and one (1) left side
• FoamLogix 2.1 foam concentrate proportioning
system with 12-gallon foam tank
• Front bumper extension center hose well with
capacity for 100' of 1 ½" hose
• Two (2) Soft suction hose wells, One (1) each
side running board
• Zico Hydraulic ladder Rack with attic ladder
brackets, storage for one (1) suction hose and two (2)
pike poles
• One (1) Suction hose storage left side above
compartments
• Two (2) Whelen large scene lights, one (1)
each side
• Two (2) Unity Deck lights, rear
• Onan 6-kW hydraulically driven Generator
• Two (2) Extenda Light 120-volt 1000-watt telescopic
flood lights
• One (1) Beta 4000, 500-watt light, center above
windshield on chassis cab
• Two (2) Hadley Air Horns, one (1) each side
in front bumper extension
• Federal electronic siren with 100-watt Federal
speaker
• PowerArc Warning Light Package
• 9' 8" Overall height
• 33' 10" Overall length
• 210" Wheelbase
• 156" Cab to Axle
• 18,000 FAWR
• 24,000 RAWR
• 42,000 GVWR
|
