North Scott Fire Protection
District
Bluffs, Illinois
Technical Specs

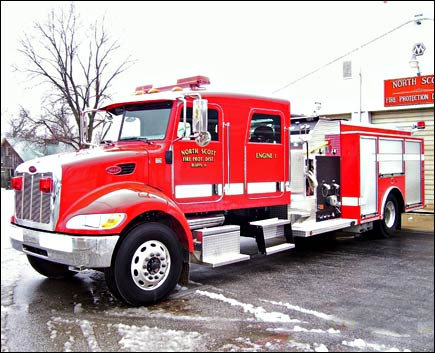

• Peterbilt 335 Crew Cab
Chassis
• Caterpillar C7 - 330 HP Diesel Engine
• Allison 3000EVS Automatic Transmission
• Heavy Duty 3/16" Aluminum Body
• 1000 Gallon UPF Poly Tank IIE
• Hale QMAX 1500 GPM Midship Pump
• Kussmaul 1200 Pump Plus battery charger/conditioner/air
compressor
• Top Mount Control Panel
• Hydraulic Ladder rack right side
• Class-1 Krystal-Lite tube, compartment lighting
• Class-1 ES-KEY Multiplex electrical system
• PowerArc warning light package
• Havis-Shield Magnifire 12V 350 watt lift lights
• Hard suction hose storage: one (1) on hydraulic
ladder rack; one (1) in compartment below tank "T"
• 9'-11" Overall Height
• 33'-6" Overall Length
• 268" Wheelbase
• 146.2" Cab to Axle
• 12,000 FAWR
• 26,000 RAWR
• 38,000 GVWR
|
