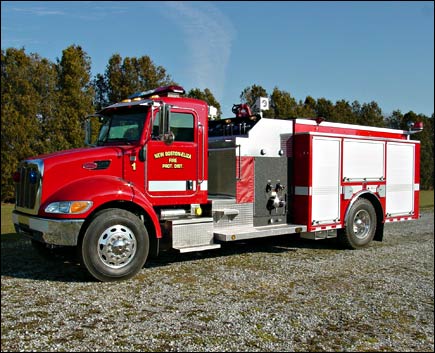

New Boston-Eliza Fire
Protection District
New Boston, Illinois
Technical Specs
• Peterbilt 335, 2-Door
Chassis
• Caterpillar C7, 330-HP Diesel Engine
• Allison 3000 EVS-P Automatic Transmission
• Heavy Duty 3/16" Aluminum Body
• UPF 1000-Gallon T-Type Poly Tank
• Hale QPAK 100, 1000-GPM Pump
• Four (4) 2 ½" Discharges, two (2)
left side, one (1) right side and one (1) rear
• Two (2) 2 ½" Gated Suction, one
(1) each side
• Two (2) 1 ½" Cartridge lay Preconnects
• One (1) 3" Discharge, for deck gun over
pump compartment
• One (1) Akron Apollo Deck Gun
• ROM Roll Up Doors
• Four (4) Air Bottle compartments, two (2) each
side in wheel wells
• Four (4) FlameFighter Walk-away Air pak brackets,
left side compartment
• One (1) Suction gutter hose storage, right
side above ladder brackets
• One (1) Suction hose storage compartment, rear
access under tank T
• Ladder brackets, right side
• Vanner 110-volt On Board Automatic Battery
charger/conditioner with shoreline
• One (1) Federal GHSCENE large scene light,
rear
• Two (2) Unity Deck Lights, rear
• Two (2) Extenda Light 12-volt telescopic lights
• Federal Electronic Siren with 100-watt Federal
speaker
• PowerArc Warning Light Package
• 9' 9" Overall height
• 29' 10" Overall length
• 216" Wheelbase
• 146.2" Cab to Axle
• 12,000 FAWR
• 26,000 RAWR
• 38,000 GVWR
|
