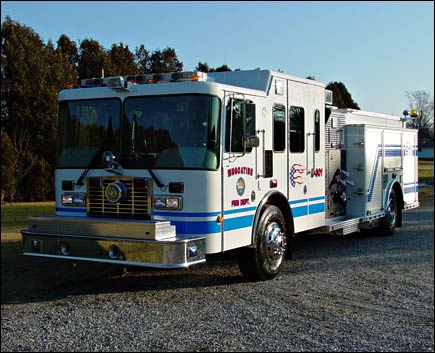

Muscatine Fire Department
Technical Specs
• HME XLFD with 12"
Raised Roof
• Cummins ISL400 - 400 HP Diesel Engine
• Allison 3000 EVS Automatic Transmission
• Heavy Duty 3/16" Aluminum Body
• 750 Gallon UPF Poly Tank IIE
• 30 Gallon Foam Poly Tank in dunage area
• Aluminum Treadplate Cover on hosebed
• Top Mount Control Panel
• Hale QMAX150 1500 GPM Stainless Steel Midship
Pump
• Hinged Pump Panels for Easy Access
• Two (2) 1-1/2" Speed Lay Preconnects ahead
of the pump
• Two (2) 1-1/2" Mattydale Preconnects above
pump module
• 1½" preconnect in front bumper with
aluminum cover
• Akron Apollo Deck Gun above pump module
• High side compartments each side
• Three (3) dual air bottle compartments in wheel
wells
• Two (2) Unity 6" 5000 candle power rear
deck lights
• Hydraulic ladder rack on right side of apparatus
• Hannay electric cord reel in rear compartment
• Whelen Warning Light package
• Class-1 "Krystal-Lite" Compartment
lighting
• 8kw ONAN Hydraulic Generator in dunage compartment
• Two (2) 1000 watt Extenda Light lift lights in
pump module
• Two (2) 500 watt Extenda Light tripod lights
at rear
• 9'-8" Overall Height
• 35'-6" Overall Length
• 237" Wheelbase
• 157.5" Cab to Axle
• 20,000 FAWR
• 27,000 RAWR
• 47,000 GVWR
|
