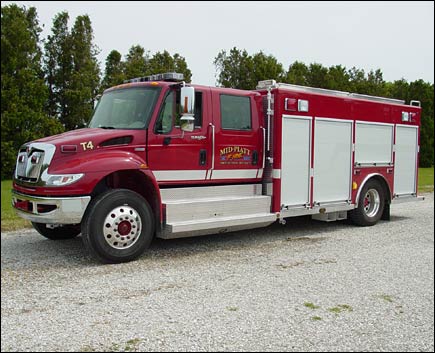

Mid-Piatt Fire Protection
District
White Heath, Illinois
Technical Specs
• International 4400 4-Door
Chassis
• International Max Force 9, 330-HP Diesel Engine
• Allison 3000EVS-P Automatic Transmission
• Heavy Duty 3/16" Aluminum Body
• UPF 500-Gallon Rectangular Poly Tank
• Hale AP50, 500-GPM PTO Pump
• One (1) 4" suction, left side compartment
• Two (2) 2 ½" Discharges, one (1)
each side
• Two (2) 1 ½" Cartridge Lay Preconnects,
front compartments
• By-Pass Eductor with 10-gallon foam tank installed
on 1 ½" preconnect
• ROM Roll Up Doors
• Reese type trailer hitch/winch receiver with
12-volt electrical, front and rear
• One (1) Ramsey QM 9000, 9,000-lb. Winch
• Four (4) Upper storage roof compartments, two
(2) each side
• Center roof walkway with Ladder storage and
access to upper compartments
• One (1) Top Access Ladder, rear mounted
• One (1) Backboard rack, side compartment
• Two (2) FlameFighter walk-away Air Pak brackets,
left side compartment
• Two (2) Hannay Dual Hydraulic hose Reels, rear
compartment
• One (1) Norcold built-in refrigerator, left
side compartment
• Four (4) Code-3 large scene lights, two (2)
each side of body
• Onan 6-kW Hydraulically driven Generator
• One (1) Akron Electric Cord Reel with 150-ft.
of 12/3 cord, rear compartment
• Two (2) Akron Extenda-Lite 120-volt 750-watt
telescopic lights, one (1) each side
• One (1) Extenda-Lite 120-volt 1000-watt telescopic
tripod flood light, rear
• Code-3 Electronic Siren with 100-watt Federal
speaker
• Code-3 Warning Light Package
• 9' 7" Overall height
• 29' 11" Overall length
• 230" Wheelbase
• 119" Cab to Axle
• 12,000 FAWR
• 21,000 RAWR
• 33,000 GVWR
|
