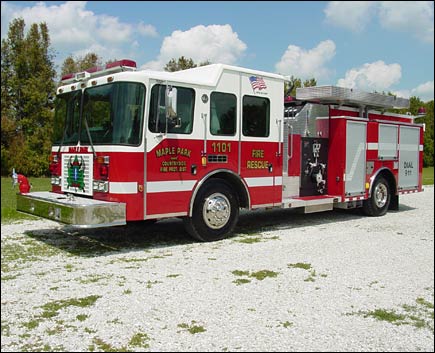

Maple Park Fire Protection
District
Maple Park, Illinois
Technical Specs
• HME Spectre MFD (medium
four door) 12" raised roof Chassis
• Cummins ISL350, 350-HP Diesel Engine
• Allison 3000EVS Automatic Transmission
• Heavy Duty 3/16" Aluminum Body
• UPF 1000-Gallon T-type Poly Tank with 20-Gallon
foam tank
• Hale QMAX150, 1500-GPM Pump
• Five (5) 2 ½" Discharges, two (2)
left side, one (1) right side and two (2) rear
• Two (2) 1 ½" Cartridge lay Preconnects
and One (1) front bumper Preconnect
• Two (2) 3" Discharge, one (1) right side
and one (1) over pump compartment
• Elkhart Portable monitor deck gun with base
• One (1) 2 ½" Gated suction, left
side and one (1) 5" front suction
• Foam bypass educator with 95-GPM capacity on
front preconnect
• ROM Roll Up Doors
• EMS compartment with adjustable shelves in
chassis cab, rear wall
• Front bumper center hose well with capacity
for 100-ft. of 1 ½" hose
• Soft suction hose well with capacity for 25-ft.
of 5" hose, left side running board
• Three (3) Dual air bottle compartments, two
(2) right side and one (1) left side
• One (1) Hard Suction hose storage under tank
"T" with rear access
• Zico Hydraulic Ladder rack with capacity for
one (1) suction hose, left side
• Kussmaul Pump Plus 1200 air compressor/battery
charger
• Kussmaul Super Auto Eject 120-volt shoreline
• Two (2) Federal GHSCENE scene lights, rear
• Tomar traffic emitter in light bar
• Onan 6-kW Hydraulically driven Generator
• One (1) Akron electric cord Reel with 150-ft.
of 10/3 cord
• One (1) Akron Extenda-Lite 120-volt 750-watt
Brow light
• Two (2) Akron Extenda-Lite 120-volt 750-watt
telescopic lights, one (1) each side
• Two (2) Akron Extenda-Lite 120-volt 500-watt
telescopic tripod lights, rear
• Dual Grover Stuttertone Air Horns recessed
in front bumper
• Federal Electronic Siren with 100-watt Cast
Products speaker
• PowerArc Warning Light Package
• 10' Overall height
• 33' 2" Overall length
• 206" Wheelbase
• 146" Cab to Axle
• 18,000 FAWR
• 27,000 RAWR
• 45,000 GVWR
|
