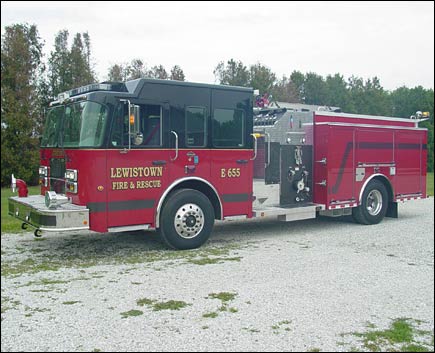

Lewistown Fire Protection
District
Lewistown, Illinois
Technical Specs
• Spartan Advantage MFD
(medium four door) 10" raised roof Chassis
• Cummins ISL350, 350-HP Diesel Engine
• Allison 3000 EVS Automatic Transmission
• Heavy Duty 3/16" Aluminum Body
• UPF 1000-Gallon T-type Poly Tank
• Hale QMID125, 1250-GPM Pump
• Two (2) 6" Suctions, one (1) each side
• Two (2) 5" Suctions, one (1) front and one
(1) rear
• Four (4) 2 ½" Discharges, two (2)
left side, one (1) right side and one (1) rear
• Two (2) 3" Discharges, one (1) right side
and one (1) over pump for deck gun
• Two (2) 1 ½" Cartridge lay Preconnects
with tray capacity for 150-ft of 1 ¾" hose
• One (1) 1 ½" Preconnect, front bumper
extension
• Front bumper extension center hose well with
capacity for 100-ft. of 1 ½" hose
• Two (2) soft suction hose wells with capacity
for 25-ft. of 4" hose each, one (1) each side running
board
• Foam Pro 1600 foam system with 20-gallon foam
tank
• Elkhart Monitor deck gun with 18" riser
extension and portable base
• ROM Roll Up Doors
• Three (3) Air bottle compartments, two (2) right
side and one (1) left side
• Kussmaul Pump Plus 1200 air compressor/battery
charger
• Kussmaul 120-volt 30-amp Super Auto Eject shoreline
• Two (2) Unity Deck lights, rear
• Onan 6-kW Hydraulically driven Generator
• One (1) Akron 120-volt electric cord reel with
150-ft. of 10/3 cord
• Two (2) Akron Extenda-Lite 120-volt 750-watt
telescopic lights, one (1) each side
• One (1) Akron Extenda-Lite 120-volt 750-watt
brow light, front cab roof
• 4500-PSI two (2) bottle cascade system
• Zico Hydraulic ladder rack with suction hose
and pike pole storage, right side
• Dual Grover Stuttertone 24" air horns, behind
front bumper extension
• One (1) Federal Q2B 12-volt Siren, front bumper
extension
• Whelen Warning Light Package
• 9' 7" Overall height
• 32' 6" Overall length
• 200" Wheelbase
• 146" Cab to Axle
• 18,000 FAWR
• 27,000 RAWR
45,000 GVWR
|
