Jefferson-Monroe Fire
Department Inc
Swicher, Iowa
Technical Specs

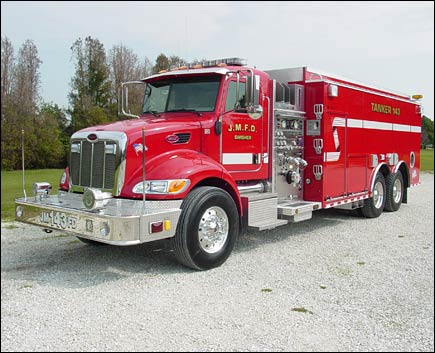

• Peterbilt 340 2-Door Tandem
Chassis
• Cummins PX8 360, 360-HP Diesel Engine
• Allison 3000 EVS Automatic Transmission
• Heavy Duty 3/16" Aluminum Body
• UPF 3000-Gallon Poly Tank
• Hale QPAK 100, 1000-GPM Midship Pump
• Side Control Pump Operator's panel
• One (1) Soft Suction Hose Well, left side running
board
• Three (3) 2 ½" Discharges, two (2)
right side and one (1) left side
• One (1) 3" Discharge, left side
• Two (2) 2 ½" Gated Suctions, one
(1) each side
• One (1) 1 ½" Front Preconnect with
hosewell and tread plate cover
• Three (3) Mattydale Preconnects, two (2) 1 ½"
and one (1) 2 ½"
• One (1) Hannay Booster reel with 150-ft. of 1"
hose, front of hosebed
• One (1) Mars 888 Traffic light pedestal mounted
right front bumper
• ROM Roll Up Doors and On Spot Automatic Tire
chains
• Two (2) Road Master Lighted Bumper markers, one
(1) each side front bumper
• FireCom Intercom system with pump panel jack,
three (3) modules and headsets
• One (1) Audiovox Color Observation back-up Camera
with sideview camera
• Six (6) Air Bottle compartments, three (3) each
side
• Four (4) FlameFighter walk-away air pak brackets
• Three (3) EJ Metals 10" round Tank Dumps
with 22" extensions
• One (1) Ziamatic Electric Folding Tank bracket,
right side
• Ladder, Suction Hose and Pike pole storage, left
side
• One (1) Kussmaul Pump-Plus 1200 air compressor/battery
charger
• One (1) Kussmaul Super Auto Eject 120-volt shoreline
• Six (6) Whelen large Scene lights, two (2) each
side and two (2) rear
• One (1) Code-3 Electronic Siren with 100-watt
Federal speaker
• One (1) Federal Q2B Siren, front bumper
• Two (2) Grover Air Horns, front bumper
• Whelen LED Warning Light Package
• 10' 6" Overall height
• 34' 1" Overall length
• 253" Wheelbase
• 183.2 Cab to Axle
• 16,000 FAWR
• 44,000 RAWR
• 60,000 GVWR
|
