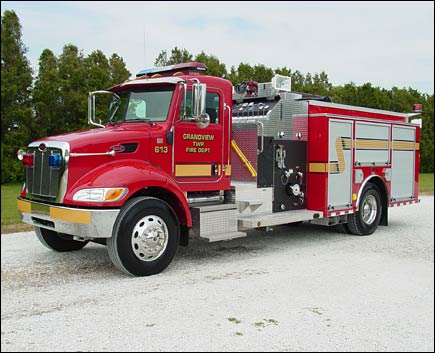

Grandview Township Fire
Department
Grandview, Iowa
Technical Specs
• Peterbilt 340 2-Door Chassis
• Cummins ISC330, 330-HP Diesel Engine
• Allison 3000EVS-P Automatic Transmission
• Heavy Duty 3/16" Aluminum Body
• UPF 1000-Gallon T-Type Poly Tank
• Hale QMAX150, 1500-GPM Pump
• Top Mount Pump Operators panel
• Five (5) 2 ½" Discharges, two (2)
each side and one (1) rear
• One (1) Gated suction, left side
• One (1) 3" Discharge over pump compartment
for deck gun
• One (1) Akron Apollo monitor deck gun
• Two (2) 1 ½" Cartridge lay Preconnects
• One (1) Hannay Booster Reel with 100-ft. of
1" hose, rear compartment
• ROM Roll Up Doors
• Four (4) Air bottle compartments, two (2) each
side
• Four (4) FlameFighter walk-away air pak brackets,
left side compartment
• One (1) Newton 10" square tank dump with
36" extension, rear
• Zico Hydraulic Ladder rack with attic ladder
bracket and storage for one (1) suction hose and one
(1) pike pole
• One (1) Suction Hose storage under tank T with
rear access
• Vanner 110-volt on-board battery charger/conditioner
• Kussmaul Super Auto Eject 120-volt shoreline
• One (1) Federal GHSCENE large scene light,
rear
• Onan 15-kW Hydraulically driven Generator
• One (1) Akron 120-volt Electric cord reel with
150-ft. of 10/3 cord
• Two (2) Akron Brass Extenda-Lite 120-volt 1000-watt
telescopic lights, pump module
• Two (2) Akron Brass Extenda-Lite 120-volt 500-watt
telescopic tripod lights, rear
• Two (2) Grover air Horns, one (1) each side
of chassis hood
• One (1) Federal Electronic Siren with 100-watt
Federal speaker
• PowerArc Warning Light Package
• 9' 10" Overall height
• 29' 1" Overall length
• 216" Wheelbase
• 146.2" Cab to Axle
• 12,000 FAWR
• 26,000 RAWR
• 38,000 GVWR
|
