Fulton Fire Protection
District
Technical Specs

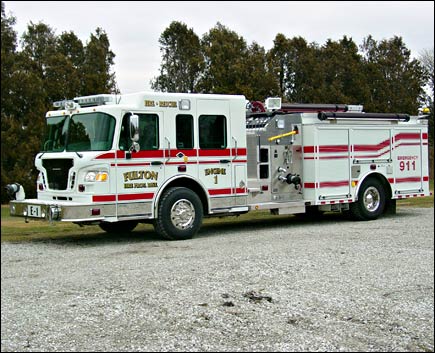

• Spartan Gladiator Evolution
LFD 10" R.R.
• Cummins ISL400 - 400 HP Diesel Engine
• Allison 3000 EVS Automatic Transmission
• Heavy Duty 3/16" Aluminum Body
• 750 Gallon UPF Poly Tank IIE
• 20 Gallon Foam Cell mounted in pump module
• EZ-Fill foam tank system
• One (1) Cascade bottle behind rear body panel
on each side
• Waterous CSU 1500 G.P.M. Stainless Steel Midship
Pump
• Top Mount Control Panel
• Soft suction well on each side
• Hinged Pump Panels for Easy Access
• Two (2) 1-1/2" Cartridge Lay Preconnects
ahead of the pump
• One (1) 2½" tank fill above rear
compartment
• Two (2) 2½" discharges above rear
compartment
• Three (3) dual air bottle compartments in wheel
wells
• High side compartments each side
• 10kw ONAN Hydraulic Generator
• Two (2) Extenda-Lite 1500 watt Lift Lights
in pump module
• Two (2) Large Extenda-Lite flood lights recess
mounted each side
• Two (2) large Whelen 90E000ZR scene lights
mounted on the rear
• Two (2) Unity 6" 5000 candle power rear
deck lights
• Hydraulic ladder rack on right side of apparatus
• Suction hose storage above left side compartments
• Suction hose storage for One (1) 10' section
on hydraulic ladder rack
• Pike Pole storage on ladder rack
• Whelen Warning Light package
• Whelen FN72QLED LED Lightbar
• Whelen TAL85 LED Arrow Stick
• Class-1 "Krystal-Lite" Compartment
lighting
• 9'-8" Overall Height
• 35'-3" Overall Length
• 225" Wheelbase
• 157.5" Cab to Axle
• 20,000 FAWR
• 27,000 RAWR
• 47,000 GVWR
|
