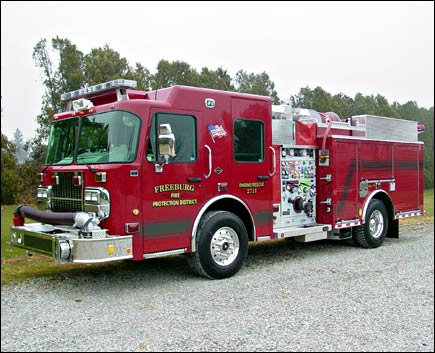

Freeburg Fire Protection
District
Freeburg, IL
Technical Specs
• Spartan Diamond SMFD,
10" raised roof Chassis
• Caterpillar C9, 400-HP Diesel Engine
• Allison 3000EVP Automatic Transmission
• Heavy Duty 3/16" Aluminum Body
• UPF 1000-Gallon T-type Poly Tank
• Hale QMID125, 1250-GPM Pump
• Left Side Pump Controls
• ROM Roll Up Doors
• Four (4) 2 ½" Discharges, two (2)
each side and One (1) 3" Discharge, right side
• Two (2) 2 ½" Mattydale Preconnects
• Three (3) 1 ½" Cartridge Lay Preconnects
• One (1) 1 ½" Preconnect in the front
bumper extension
• Four (4) Air bottle Compartments, Two (2) each
side wheel wells
• Foam Proportioning System with 30-gallon foam
tank
• Akron Apollo "Hi-Riser" Deck Gun with
automatic nozzle
• Kussmaul Battery Conditioner and Super Auto-Eject
receptacle
• Hannay 120-volt electric cord reel, right side
• Hannay electric Air Hose reel, left rear compartment
• Three (3) Hurst Hydraulic Hose Reels, upper rear
compartment
• Hurst Tri Power Unit, rear compartment
• One (1) Electric Booster reel, right side
• Zico Hydraulic Ladder Rack, right side
• Onan 15-kW Hydraulically driven Generator
• One (1) Havis-Shields Magnafire, 120-volt scene
light, center of front roof line
• Four (4) Federal GHSCENE Scene lights, One (1)
each side and Two (2) rear
• Two (2) Collins Spot/Flood Deck Lights, rear
• Night Scan Powerlite Light Tower with dual tilt
• Dual Grover Stuttertone 24" Air horns recessed
in the front bumper
• Federal Q2B, 10" electric Siren
• Federal Electronic Siren with Cast Products 100-watt
speaker
• Whelen Warning light Package
• 9' 10" Overall height
• 30' 8" Overall length
• 180" Wheelbase
• 135" Cab to Axle
• 20,000 FAWR
• 27,000 RAWR
• 47,000 GVWR
|
