Flat Rock Area Fire
Protection District
Flat Rock, Illinois
Technical Specs

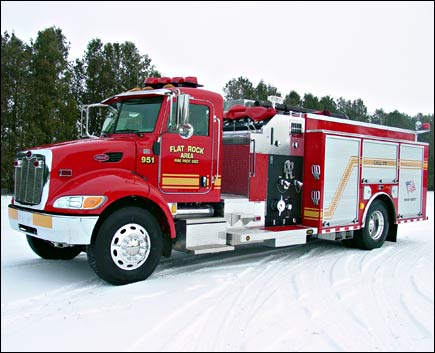

• Peterbilt 335 2-door
Chassis
• Cummins ISC330, 330-HP Diesel Engine
• Allison 3000 EVS Automatic Transmission
• Heavy Duty 3/16" Aluminum Body
• UPF 1000-Gallon T-type Poly Tank with 20-Gallon
Foam Tank
• Hale DSD150, 1500-GPM Pump
• Four (4) 2 ½" Discharges, two (2)
left side, one (1) right side and one (1) rear
• One (1) 3" Discharge, right side and one
(1) 3" Discharge on the deck
• One (1) 2 ½" Gated suction, left
side
• Two 1 ½" Cartridge lay Preconnects
• Waterous Pneumax 80-SP CAFS System
• Foam Pro 1601 single tank Foam Proportioner
• Elkhart Portable Monitor Deck Gun with Extension
and Base
• ROM Roll Up Doors
• Top Mount Pump controls with Hypalon cover
• One (1) Kussmaul Air Eject
• Two (2) Soft suction hose wells, one (1) each
side recessed in the running boards
• Three (3) Air bottle compartments, two (2)
left side, one right side and One (1) Fire Extinguisher
compartment, right side
• Five (5) FlameFighter walk-away Air Pak brackets
installed in compartments
• Zico Hydraulic Fol-Da-Tank Rack, right side
• Ladder and pike pole storage compartment under
the hose bed
• Vanner 110-volt Automatic Battery charger/conditioner
• Two (2) Unity Deck lights, rear
• Onan 6 k-W hydraulically driven Generator
• One (1) Akron Electric cord reel in top of
rear compartment
• Two (2) Extenda Light 120-volt 750-watt telescopic
lights, one (1) each side of pump module
• Kussmaul Super Auto Eject 120-volt Shoreline
• Federal Electronic Siren with 100-watt speaker
• Federal Warning Light Package
• 9' 10" Overall height
• 28' 11" Overall length
• 216 Wheelbase
• 146.2 Cab to Axle
• 12,000 FAWR
• 26,000 RAWR
• 38,000 GVWR
|
