Farmington Community
Fire
Protection District
Farmington, Illinois

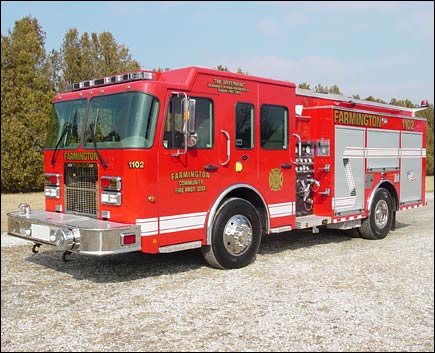

Technical Specs
• Spartan Big Easy MFD (medium
four door) 10" raised roof Chassis
• Caterpillar C7, 330-HP Diesel Engine
• Allison 3000 EVS-P, Automatic Transmission
• Heavy Duty 3/16" Aluminum Body
• UPF 1500-Gallon T-Type Poly Tank
• Waterous CXVK, 1000-GPM Pump
• Left side Pump controls
• Five (5) 2 ½" discharges, two (2)
left side, one (1) right side and two (2) rear
• Two (2) 2 ½" Gated Suction, one
(1) each side
• One (1) 5" Suction, rear
• Two (2) 1 ½" Cartridge lay Preconnects
with capacity for 200-ft. of 1 ¾" hose each
• One (1) 2 ½" Preconnect in the
bumper extension
• Hose well in front bumper extension with capacity
for 100-ft. each of 1 ½" and 2 ½"
hose
• ROM Roll Up Doors
• Two (2) Air bottle compartments with capacity
for two (2) bottles each, right side
• One (1) Fire extinguisher compartment, left
side
• One (1) Newton square tank dump with 36"
extension, rear
• Zico Hydraulic Ladder rack with attic ladder
bracket, right side
• Kussmaul 1200 battery conditioner
• Four (4) Federal GHSCENE large scene lights,
one (1) each side and two (2) rear
• Onan 8-kW Hydraulically driven Generator
• Two (2) Extenda Light telescoping 120-volt
lights
• Four (4) bottle 4500-PSI Cascade system, front
of hose bed
• Two (2) Hadley Stuttertone 24" Air horns,
behind front bumper extension
• One (1) Federal Q2B Siren, front bumper on
the left side
• Code-3 Electronic Siren with 100-watt Federal
speaker
• Whelen Upper Warning light Package, Code-3
Lower Warning Light Package
• 10' 3" Overall height
• 30' 7" Overall length
• 171" Wheelbase
• 117" Cab to Axle
• 18,000 FAWR
• 31,000 RAWR
• 49,000 GVWR
|
