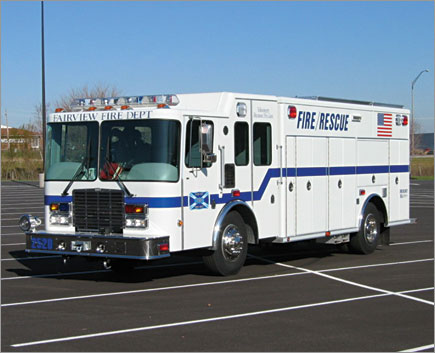

Fairview-Caseyville
Township
Fire Protection District
Technical Specs
• HME P2 MFD Raised Roof
Chassis
• Cummins ISC-330 330 HP Diesel Engine
• Allison 3000 EVS Automatic Transmission
• Onan 25 kW PTO Generator
• Code-3 Light package
• Hitch receivers located at the front, rear, and
one (1) each side
• One (1) compartment each side directly behind
the cab for cribbing storage
• 4-bottle 4500 psi cascade system with fill station
in the L2 compartment
• Two (2) vertical pull out boards in the L3 compartment
• Two (2) roll-outdrop down trays in the L4 over
the wheel compartment
• Two (2) adjustable shelves in the L5 compartment
• Two (2) roll out trays in the R2 compartment
• One (1) roll out drop down tray and one (1) roll
out tray in the R3 compartment
• Two (2) roll out drop down trays in the R4 compartment
• Two (2) adjustable shelves and one (1) air bag
rack in the R5 compartment
• Two (2) roll out drop down trays and one (1)
roll out tray in the rear compartment
• Two (2) upper storage compartments each side
of the walkway
• Night scan light tower recess mounted in the
roof of the apparatus
• 210" Wheelbase
• 147" Cab to Axle
• 9'-10" Overall Height
• 31'-11" Overall Length
• 14,600 FAWR
• 22,000 RAWR
• 38,600 GVWR
|
