Equistar Chemicals
Technical Specs

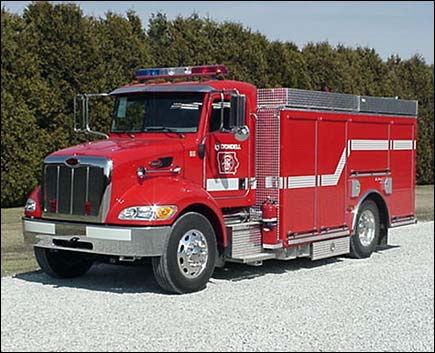

• Peterbilt 330 2-Door
Chassis
• Caterpillar C7 300 HP Diesel Engine
• Allison 3000EVS Automatic Transmission
• 500 Gallon UPF Poly Tank
• Waterous SD100 1500 GPM Rear mount pump w/ TY
Gear Case
• Two (2) 1-1/2" Cartridge Lay preconnects
within L4/R4 compartment
• Deck Gun located at the rear of the hosebed ,
protected by aluminum panels to allow the hose to evacuate
the hosebed around the monitor.
• Power Arc light package
• Elkhart Stinger Monitor on Task-Force-Tips Extend-A-Gun
• Havis-Shields Magnafire 3000 lift lights on front
corners of body
• Underbody storage compartment left side
• High Side compartments each side
• Four (4) walkaway air pack brackets in L3 compartment
• One (1) adjustable shelf, each, in the L4 &
R4 compartment
• Roll-out trays: one (1) in R3 compartment, two
(2) in R2 compartment, two (2) in R1 compartment, one
(1) in L4 compartment, two (2) in L1 compartment
• Hannay booster reel in R4 compartment bottom
• Two (2) vertical pull-out tool boards in L2 compartment
• Top side Stokes basket compartment on left side
• Top side storage compartments on right side and
cross-body ahead of hose trays
• 9'-10" Overall Height
• 24'-3" Overall Length
• 10,000 FAWR
• 18,000 RAWR
• 28,000 GVWR
|
