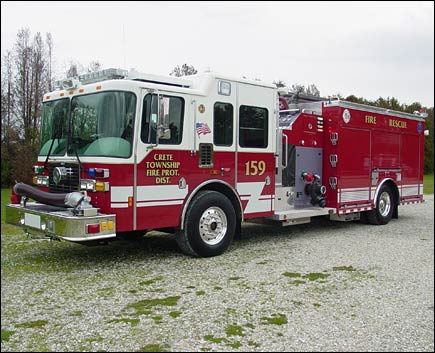

Crete Township Fire
Protection District
Crete, Illinois
Technical Specs
• HME 1871-P MFDxL 12"
Raised Roof Chassis
• Caterpillar C9, 400-HP Diesel Engine
• Allison 3000 EVS Automatic Transmission
• Heavy Duty 3/16" Aluminum Body with ROM
Roll Up Doors
• UPF 1000-Gallon T-type Poly Tank
• Hale QMAX150, 1500-GPM Pump
• Two (2) 2 ½" Discharges, one (1)
each side
• Four (4) 3" Discharges, one (1) each side,
one (1) rear and one (1) over pump
• One (1) Akron Apollo Deck Gun with TFT Extend-A
Gun
• Two (2) 2 ½" Preconnects, one (1)
front of hose bed and one (1) front bumper
• Two (2) 1 ½" Cartridge Lay Preconnects
with capacity for 200-ft. of 1 ¾" hose
• EMS Compartment rear wall chassis cab
• One (1) Kussmaul Auto Air eject, left side
• Soft Suction Hose Well with Hypalon cover,
right side running board
• Two (2) Walk-way compartments, one (1) each
side under walk-way
• Four (4) Upper storage compartments with shoe
box style lids, two (2) each side
• Three (3) Dual Air Bottle compartments, one
(1) left side and two (2) right side
• Two (2) Hannay Dual Hydraulic hose Reels, rear
compartment
• 6000-psi Cascade System with three (3) bottles
• Zico Hydraulic Ladder Rack with one (1) suction
hose storage
• One (1) Kussmaul 1200 battery charger/conditioner
with Auto Eject shoreline
• Onan 15-kW Hydraulically driven Generator
• Two (2) Akron Electric Cord Reels with 100-ft.
of 10/3 cord, one (1) each side
• One (1) 120-volt fluorescent light, chassis
crew area
• One (1) Havis-Shields 120-volt 750-watt brow
light, cab roof
• Two (2) Havis-Shields 120-volt 750-watt telescoping
lights, one (1) each side
• Two (2) Havis-Shields 120-volt 750-watt telescopic
tripod lights, rear
• One (1) Command Light Tower with four (4) 750-watt
lights
• Dual Stuttertone Air Horns, recessed in the
front bumper
• Q2B mechanical Siren and Federal 100-watt Electronic
Siren with speaker
• Whelen Warning Light package
• 10' 8" Overall height
• 34' 8" Overall length
• 227" Wheelbase
• 167" Cab to Axle
• 20,000 FAWR
• 27,000 RAWR
47,000 GVWR
|
