Cornell Volunteer Fire
Department
Cornell, Illinois
Technical Specs

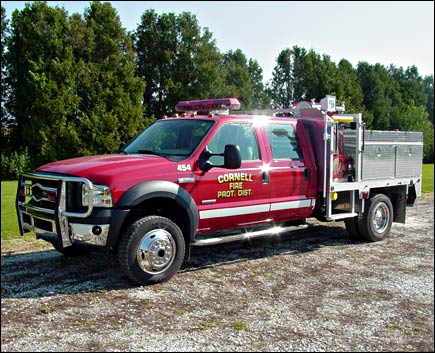

• Ford F-550, 4-door 4x4
DRW Chassis
• International A325, 325-HP Diesel Engine
• Ford 5-speed Automatic Transmission
• Heavy Duty 3/16" Aluminum Body
• UPF 300-Gallon Poly Tank with 12-Gallon Foam
Cell
• Hale HPX200, 60-GPM Pump with Honda 20-HP gasoline
engine
• Elkhart 240, 60-GPM Foam eductor
• One (1) 2 ½" Gated suction, rear
• One (1) 2 ½" Discharge with hose
tray, rear
• Two (2) 10-foot long 1" Booster lines
• Luverne Chrome Brush Guard
• Front and Rear Reese type trailer hitches
• Two (2) compartments, one (1) each side with
drop down doors
• One (1) open storage tray on the right side
compartment top
• One (1) Back Board Storage Box on the left
side compartment top
• Two (2) Electrically controlled Spray Booms
in the front bumper
• Hannay Electric booster reel mounted on top
of the tank
• Two (2) Whelen Scene lights, One (1) each side
on the upper rear compartments
• Two (2) 12-volt Extenda Light telescopic flood
lights, One (1) each side on the front of the headache
rack
• Code 3 Siren with Federal 100-watt speaker
• Whelen Warning Light package
• 7' 10" Overall height
• 22' 6" Overall length
• 176.2" Wheelbase
• 60" Cab to Axle
• 7,000 FAWR
• 13,660 RAWR
19,000 GVWR
|
