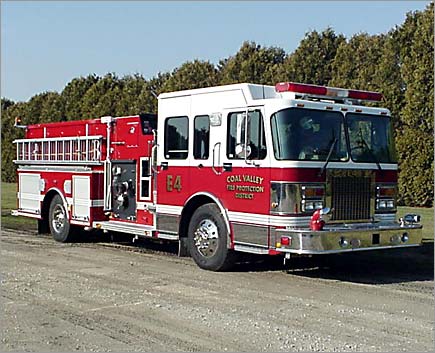

Coal Valley Fire Protection
District
Technical Specs
• Spartan Metro Star MFD
Chassis with 10"
Raised Roof
• Cummins ISC-350 350 HP Diesel Engine
• Allison MD-3066P Automatic Transmission
• Heavy Duty 3/16" Aluminum Body
• 1000 Gallon UPF Poly Tank IIE
• Hale QFLO 125 1250 GPM Midship Pump
• 5" Front Suction electrically controlled
• One (1) 1-1/2" bumper extension preconnect
with hosewell for 150 of hose
• Top Mount Control Panel
• Two (2) 1-1/2" Cartridge Lay Preconnects
ahead
of the pump
• One (1) Electric Cord Reel each side of the
apparatus in the upper pump module area
• High side compartments left side, low side
compartment right side with ladder storage
above the right side compartments
• One (1) adjustable shelf and one (1) roll-out
tray
in the L1 compartment
• One (1) adjustable shelf in the L3 compartment
• One (1) adjustable shelf in the R1 compartment
• One (1) adjustable shelf in the R2 compartment
• Suction hose storage under the tank "T"
on
each side, accessible from the apparatus rear
• Onan 8 KW Hydraulic Generator
• Whelen Light package
• 10'-4" Overall Height
• 32'-10" Overall Length
• 204" Wheelbase
• 150" Cab to Axle
• 18,000 FAWR
• 24,000 RAWR
• 42,000 GVWR
|
