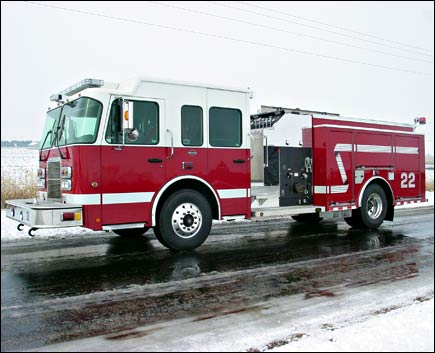

City Of Chariton-Chariton
Fire Department
Chariton, Iowa
Technical Specs
• Spartan Advantage Big
Easy MFD 10" raised roof Chassis
• Caterpillar C7, 330-HP Diesel Engine
• Allison 3000 EVP Automatic Transmission
• Heavy Duty 3/16" Aluminum Body
• UPF 1000-Gallon T-Type Poly Tank with 20-Gallon
Foam tank
• Hale QMAX150, 1500-GPM Pump
• Top Mount Pump Panel
• Three (3) 2 ½" Discharges, two (2)
left side and One (1) rear
• One (1) 3" Discharge, right side and one
(1) 3" Discharge on the deck for monitor
• One (1) 2 ½" Preconnect at the front
of the apparatus hose bed
• One (1) 2 ½ Gated Suction, left side and
One (1) 5" Suction, rear
• Two (2) 1 ½" Cartridge Lay Preconnects
• One (1) 1 ½" Preconnect within front
bumper extension
• Foam Pro 1600 Foam System
• Akron Apollo Deck Gun with Akron TurboMaster
nozzle
• Three (3) Air Bottle Compartments, two (2) right
side and one (1) left side
• ROM Roll Up Doors
• One (1) FlameFighter Walk-away Air Pak bracket,
right side compartment
• Zico Hydraulic Ladder with attic ladder brackets,
right side
• Two (2) Whelen large Scene lights, rear
• Two (2) Unity Deck lights, rear
• Two (2) Extenda Light telescoping flood lights
• Dual Hadley Stuttertone 24" Air horns behind
front bumper extension
• Federal electronic Siren with 100-watt Federal
speaker
• Whelen Warning light package
• 9' 9" Overall height
• 32' 8" Overall length
• 200" Wheelbase
• 146" Cab to Axle
• 18,000 FAWR
• 27,000 RAWR
• 45,000 GVWR
|
