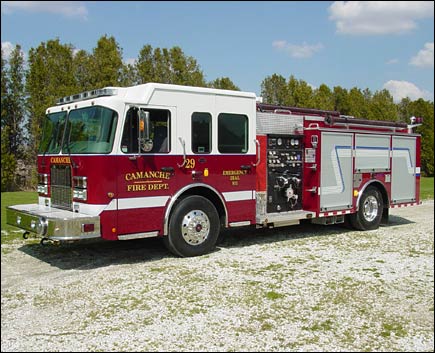

City Of Camanche Fire
Department
Camanche, Iowa
Technical Specs
• Spartan Big Easy MFD
(medium four door) with 10" raised roof Chassis
• Cummins ISC330, 330-HP Diesel Engine
• Allison 3000EVS Automatic Transmission
• Heavy Duty 3/16" Aluminum Body
• UPF 750-Gallon T-type Poly Tank
• Hale QMAX150, 1500-GPM Pump
• Side Control Operator's Panel
• Two (2) 2 ½" Discharges, left side
and one (1) 2 ½" Discharge, right side
• One (1) 3" Discharge, right side and one
(1) 3" Discharge for deck gun over pump
• One (1) 2 ½" Gated suction, left
side
• One (1) 2 ½" Preconnect, front
of hose bed
• Two (2) 1 ½" and one (1) 2 ½"
Cartridge Lay Preconnects with Hypalon covers
• One (1) Akron Apollo Deck Gun with 18"
TFT Extend-A-Gun
• FoamPro 1600 Foam System with 10-Gallon foam
tank
• Center Hose well with treadplate cover and
capacity for 100-ft. of 1 ½" hose
• ROM Roll Up Doors
• Three (3) Air Bottle Compartments, one (1)
left side and two (2) right side
• Zico Hydraulic Ladder rack with attic ladder
bracket, one (1) suction hose gutter and two (2) pike
poles. right side
• One (1) Suction Gutter bracket, left side
• One (1) Kussmaul Pump Plus 1200 Automatic battery
charger/air compressor
• One (1) Kussmaul Super Auto Eject 120-volt
shoreline
• Two (2) Unity Deck Lights, rear
• Onan 8-kW hydraulically driven Generator
• One (1) Akron Electric cord reel with 150-ft.
of cord, top of rear compartment
• Two (2) Akron Brass Extenda-Lite 120-volt 1000-watt
telescopic lights
• Dual Hadley 24" Air Horns, behind front
bumper extension
• One (1) Federal E-Q2B Electronic Siren with
200-watt speaker
• Whelen Warning Light Package
• 10' 1" Overall height
• 32' 8" Overall length
• 200" Wheelbase
• 146" Cab to Axle
• 18,000 FAWR
• 27,000 RAWR
• 45,000 GVWR
|
