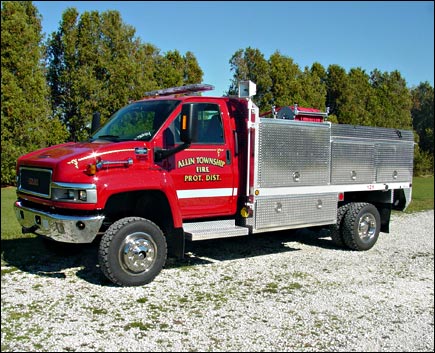

Allin Township Fire
Protection District
Stanford, Illinois
Technical Specs
• GMC 5500, 2-Door 4x4 Chassis
• GMC 8.1-Liter, 325-HP Gasoline Engine
• Allison 1000RDS Automatic Transmission
• Heavy Duty 3/16" Aluminum Body
• UPF Defender 2C, 300-Gallon Poly Tank
• Hale HPX300, 150-GPM Pump with Honda 20-HP
Gasoline Engine
• One (1) 2 ½" Discharge
• Two (2) 10-foot long 1" Booster Lines
• Two (2) Electrically controlled Spray Booms
in the front bumper
• One (1) Hannay electric Booster Reel with 150'
of 1" hose
• One (1) Ramsey 9000-lb Winch with front and
rear Reese type hitches
• Two (2) underbody compartments, one (1) each
side in front of rear wheels
• Two (2) compartments, one (1) each side with
lift up doors
• One (1) transverse compartment behind headache
rack
• Two (2) storage trays, one (1) each side on
top of compartments with capacity for 150' of 1 ¾"
hose
• Generac S2400, 120-volt 60-Hz Generator
• Two (2) Extenda Light 120-volt 500-watt Telescopic
flood lights
• One (1) Buell Air Horn Kit with One (1) 18"
and one (1) 15" air horn mounted on the hood
• Code-3 Siren with two (2) Federal 100-watt
speakers
• Code-3 Upper Warning light Package
• PowerArc Lower Warning light Package
• 8' 5" Overall height
• 26' 1" Overall length
• 176" Wheelbase
• 108" Cab to Axle
• 7,000 FAWR
• 13,500 RAWR
19,500 GVWR
|
